— 7 —

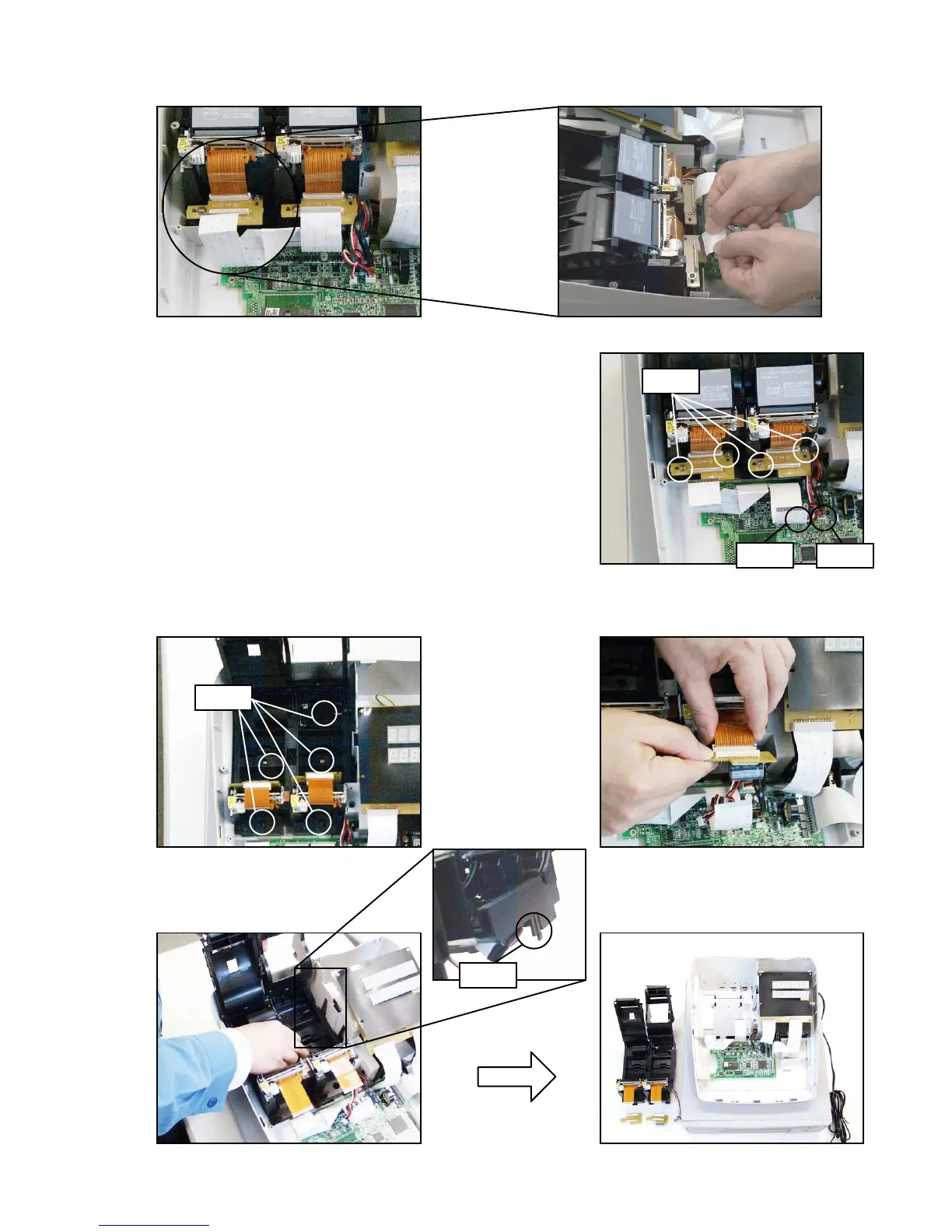

5.
Remove one FPC (CN2).
6.
Remove four screws and two connectors (CN9, CN10).
7.
Removing the PRINTER UNIT
1
Remove five screws.
2
Remove the joint PCB.
3
Remove the PRINTER UNIT while pressing two hooks as shown in the figure.
Hook
opposite side
1
3
Screws
Screws
CN10
CN9
2
8
10
Table of Contents
Service Manual
2
Table of Contents
2
Specifications
3
Initilaize Operation
5
Block Diagram
6
Disassembly
7
Circuit Explanations
18
Diagnostic Operation
23
Error Code List
30
IC Data
31
Pcb Layout
32
Circuit Diagrams
34
Parts List
47
Explode View
48
Main Pcb Block
50
Main Display Pcb Block
51
Customer Display Block
51
Button Block
52
Upper Case Block
52
Lower Case Block
52
Printer Block
52
Others
53
Power Supply Lock
53
Drawer (Dl-2778)
54
Drawer (Dl-2779)
56
