General Guide

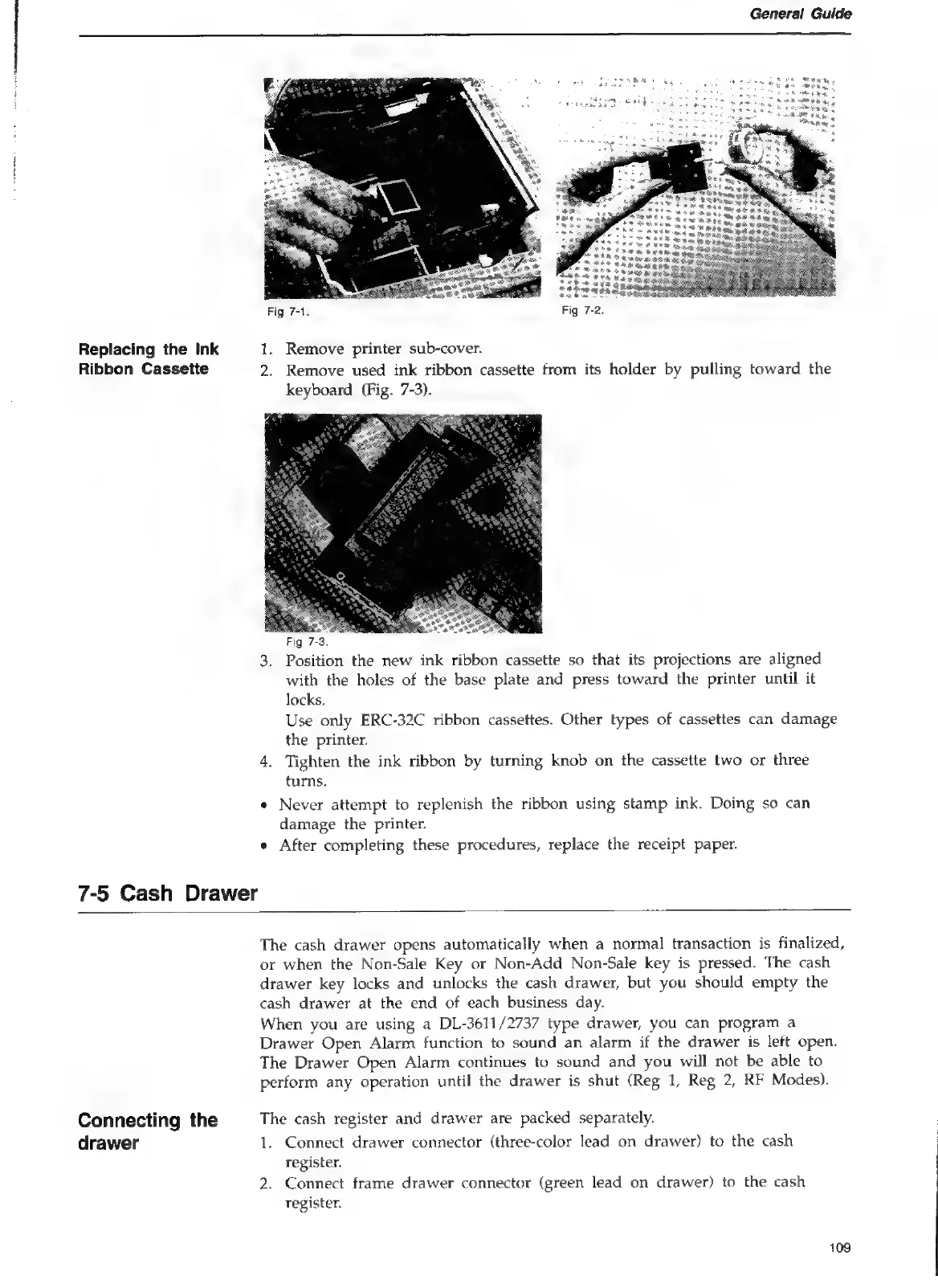

Fig 7-1.
=
Replacing the Ink Remove printer sub-cover.
Ribbon Cassette 2. Remove used ink ribbon cassette from its holder by pulling toward the
keyboard (Fig. 7-3).
3. Position the new ink ribbon cassette so that its projections are aligned
with the holes of the base plate and press toward the printer until it
locks.
Use only ERC-32C ribbon cassettes. Other types of cassettes can damage
the printer.
4. Tighten the ink ribbon by turning knob on the cassette two or three
turns.
Never attempt to replenish the ribbon using stamp ink. Doing so can
damage the printer.
After completing these procedures, replace the receipt paper.
7-5 Cash Drawer
The cash drawer opens automatically when a normal transaction is finalized,
or when the Non-Sale Key or Non-Add Non-Sale key is pressed. The cash
drawer key locks and unlocks the cash drawer, but you should empty the
cash drawer at the end of each business day.
When you are using a DL-3611/2737 type drawer, you can program a
Drawer Open Alarm function to sound an alarm if the drawer is left open.
The Drawer Open Alarm continues to sound and you will not be able to
perform any operation until the drawer is shut (Reg 1, Reg 2, RF Modes).
Connecting
the
The
cash
register
and
drawer
are
packed
separately.
drawer
1.
Connect
drawer
connector
(three-color
lead
on
drawer)
to
the
cash
register.
2.
Connect
frame
drawer
connector
(green
lead
on
drawer)
to
the
cash
register.
