— 11 —

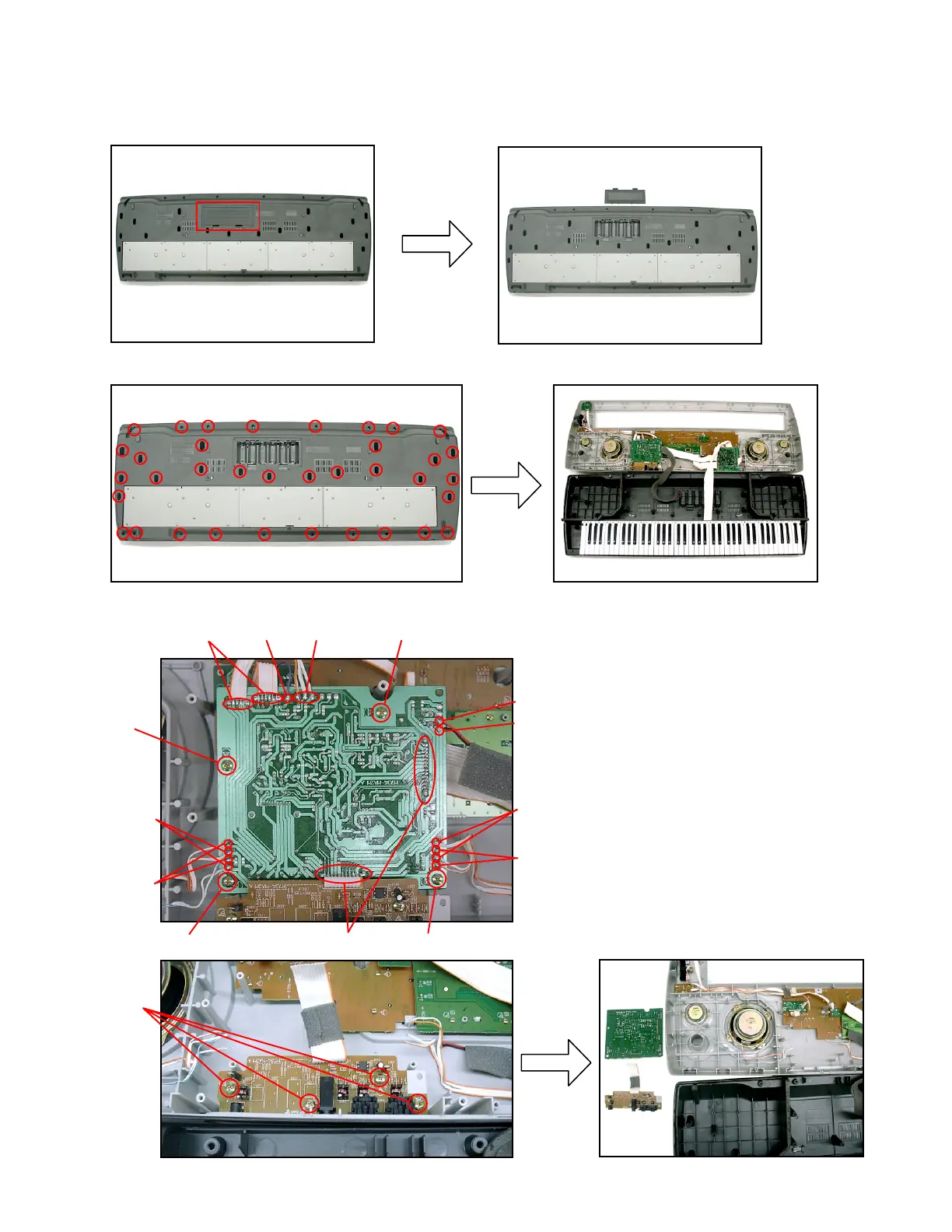

DISASSEMBLY
1. Remove the battery cover and then the battery.
2. Remove 36 screws and then the upper case.
3.
Remove 4 screws, 8 speaker cords, 2 battery cords, 1cord (PM), 5 connectors (JD, JG2, JH, JK, JJ) and then the PCB ASS'Y (MA2M).
Speaker cords (O)
Speaker cords (W)
Battery cord (R)
Battery cord (B)
Screw
Connectors
Screw
Screw
Speaker
cords (O)
Speaker
cords (W)
Screw
Connectors
Screws
ConnectorCord
