— 12 —

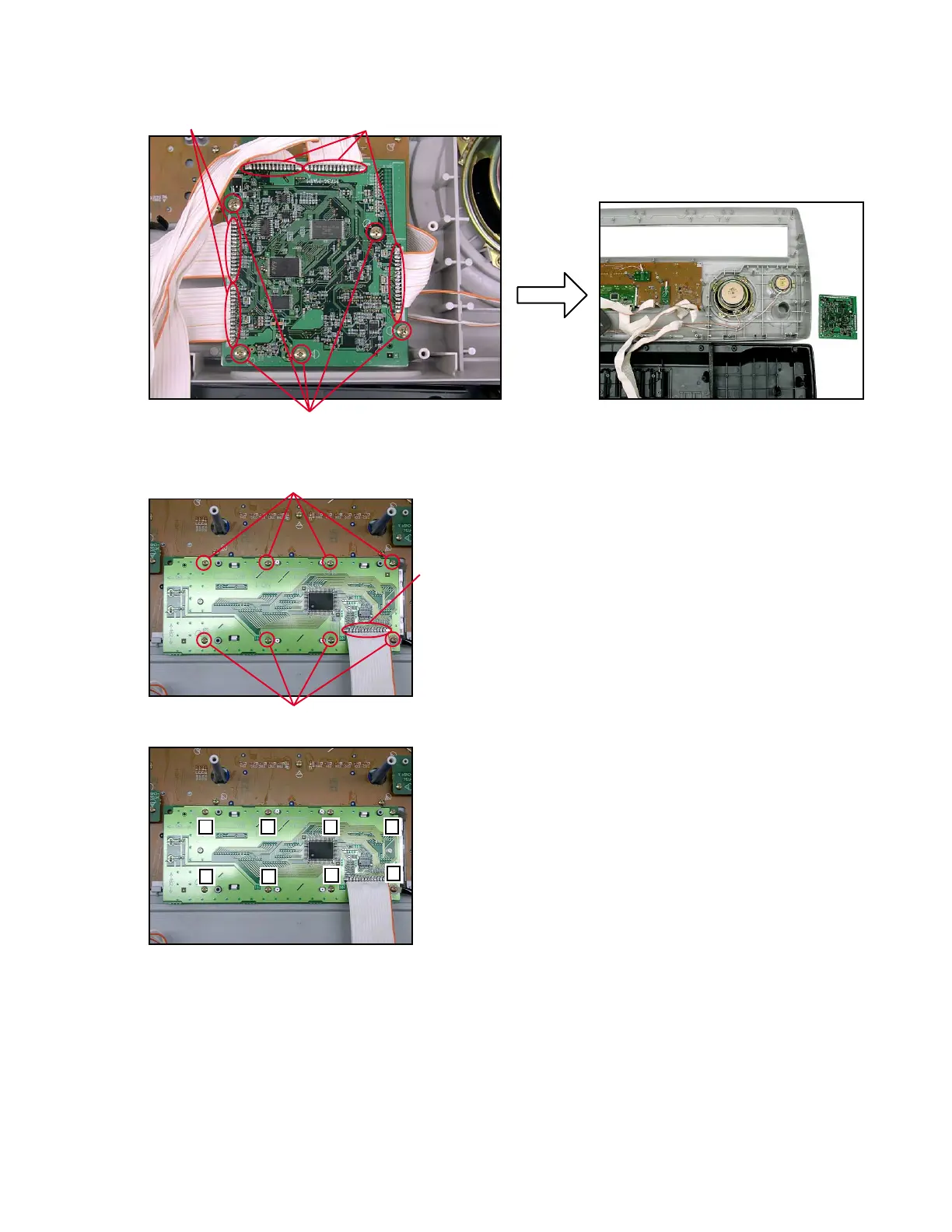

4. Remove 5 screws, 5 connectors (JA, JB, JD, JE, JF) and then the PCB ASS'Y (MA1M).
Screws
ConnectorsConnectors
5. Remove 8 screws, 1 connector and then the LCD ASS'Y (LCD1M).
Note: Tighten the screws in the order from 1 to 8 when
reassembling.
Screws
Screws
Connector
3
6
7
1852
4
