— 11 —

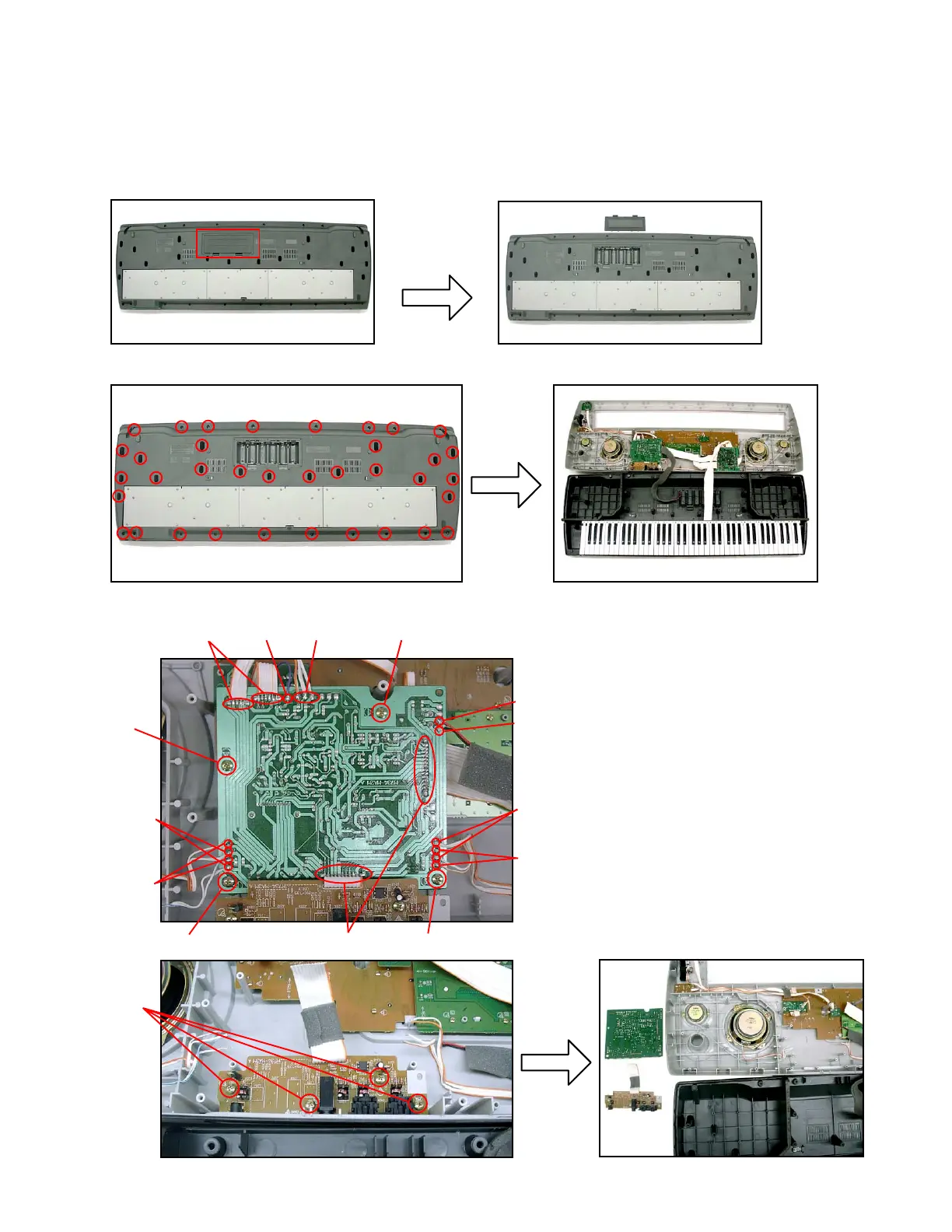

2. Remove 36 screws and then the upper case.
3.
Remove 4 screws, 8 speaker cords, 2 battery cords, 1cord (PM), 5 connectors (JD, JG2, JH, JK, JJ) and then the PCB ASS'Y (MA2M).
Speaker cords (O)
Speaker cords (W)
Battery cord (R)
Battery cord (B)
Screw
Connectors
Screw
Screw
Speaker
cords (O)
Speaker
cords (W)
Screw
Connectors
Screws
ConnectorCord
DISASSEMBLY
■ The Disassembly Procedure inscribed on this manual is the same as that of WK-3200
since WK-3800 has almost the same frame as WK-3200.
1. Remove the battery cover and then the battery.
To Next Page
