J. FAN MODULE A
-28-
Strainer

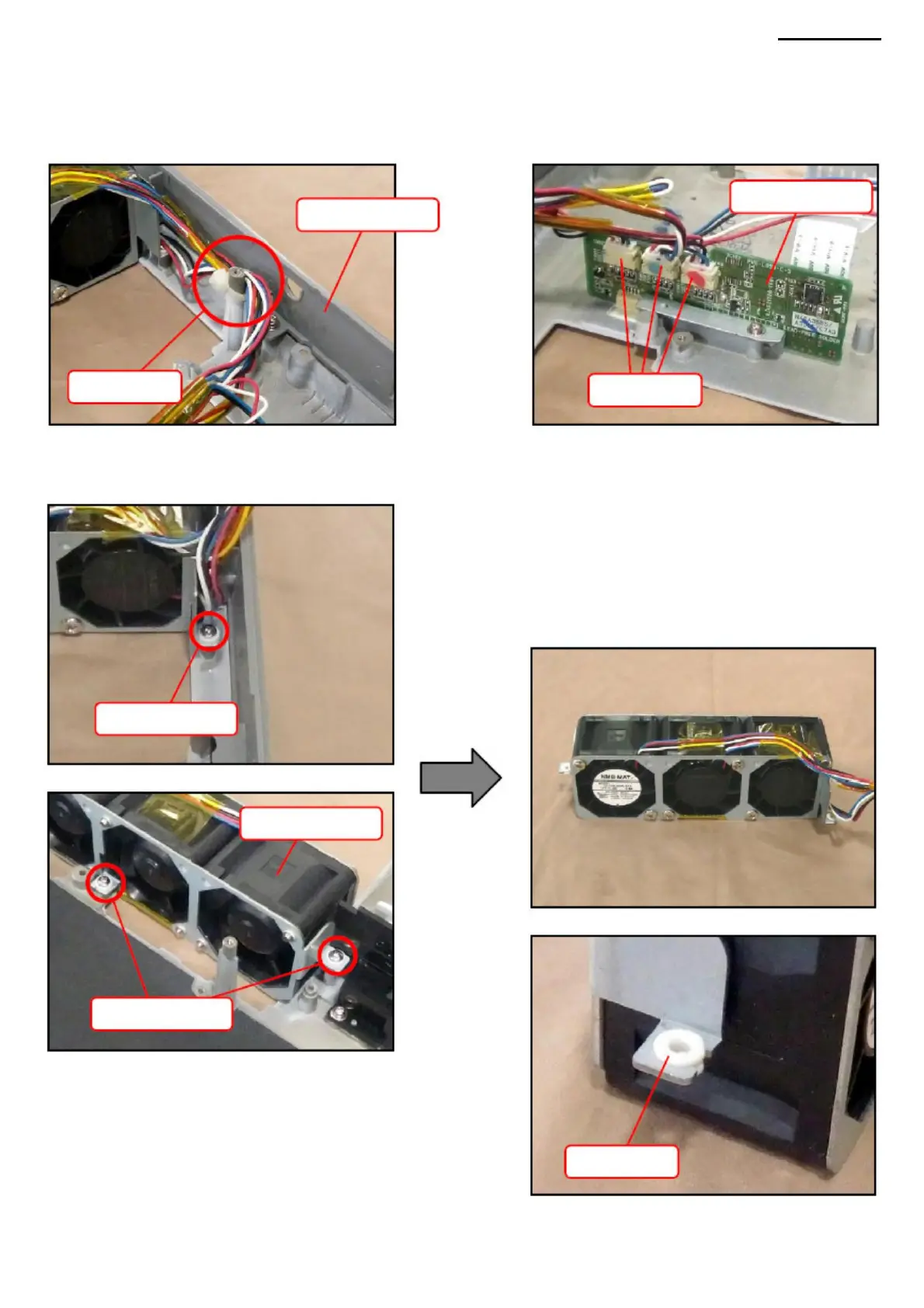

J-1. Remove the cable tie.
Screws (S12)
Connector
J-2. Disconnect the three connectors attached to the PWB-3 board.
Salary PWB-3
J-3. Remove three screws (S12) and remove fan A. NOTE: A
bushing is installed in each hole. Do not interchange bushings.
XJ-A240/A245
Screw (S12)
Back panel
Bushing
Fan
module A
