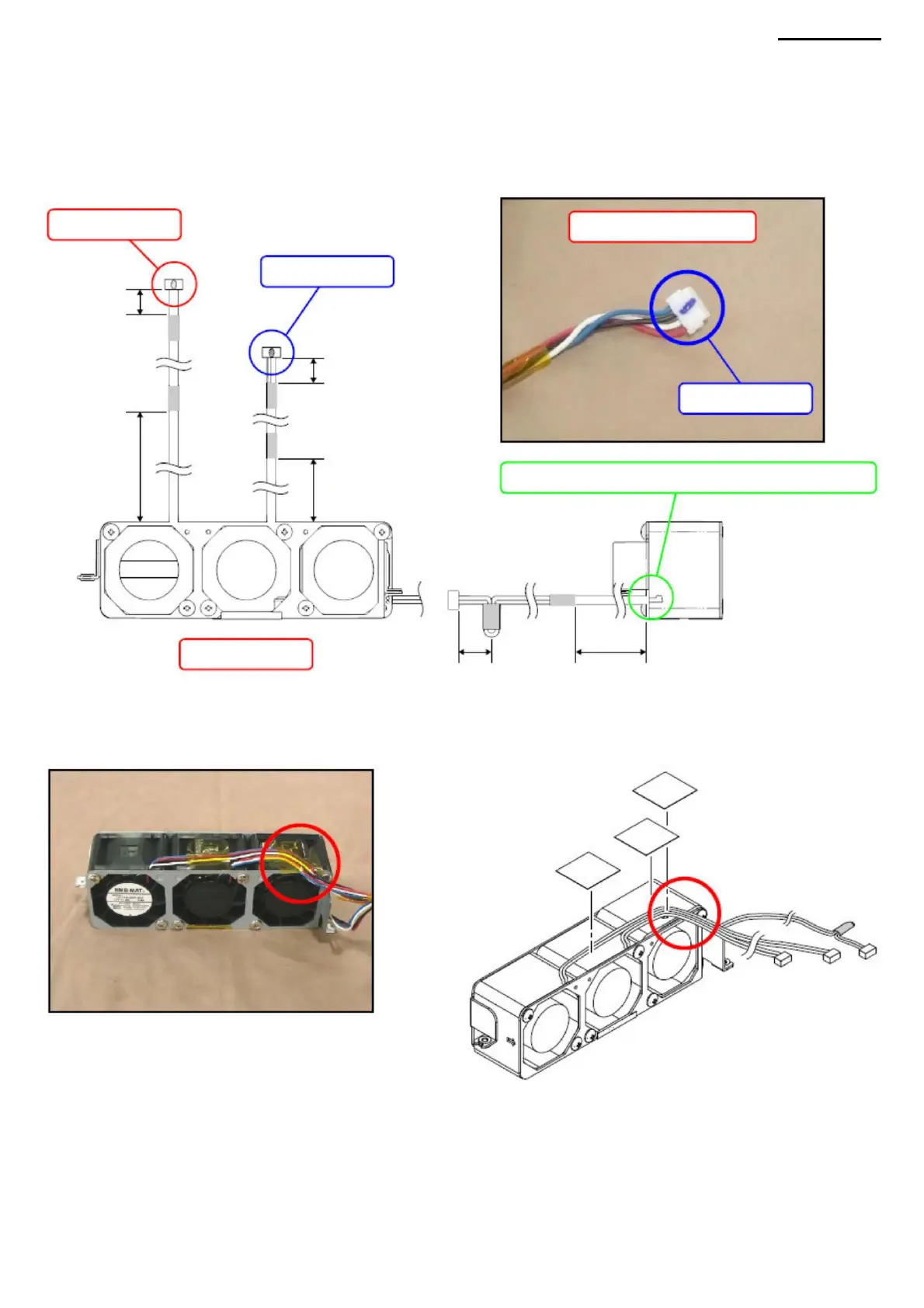

<CAUTIONS WHEN INSTALLING A NEW PART: FAN MODULE A> When replacing a component in fan
module A with a new fan, proceed as follows: • Wrap the cables with tape to the length shown in the following figure. • When
replacing
a fan, make a mark with a colored marker on the connector.
Remove the cables from the fan slot
blue label
XJ-A240/A245
120 mm
red label
NOTE: When replacing the fan on the right side of the fan module, as shown in the figure, the tag is not required.
90 mm
50 mm
blue label
Label example
20 mm
20 mm
each other.
20 mm
• When fixing the cables to the fan with tape, make sure that the cables do not overlap
FAN
MODULE A
-29-
