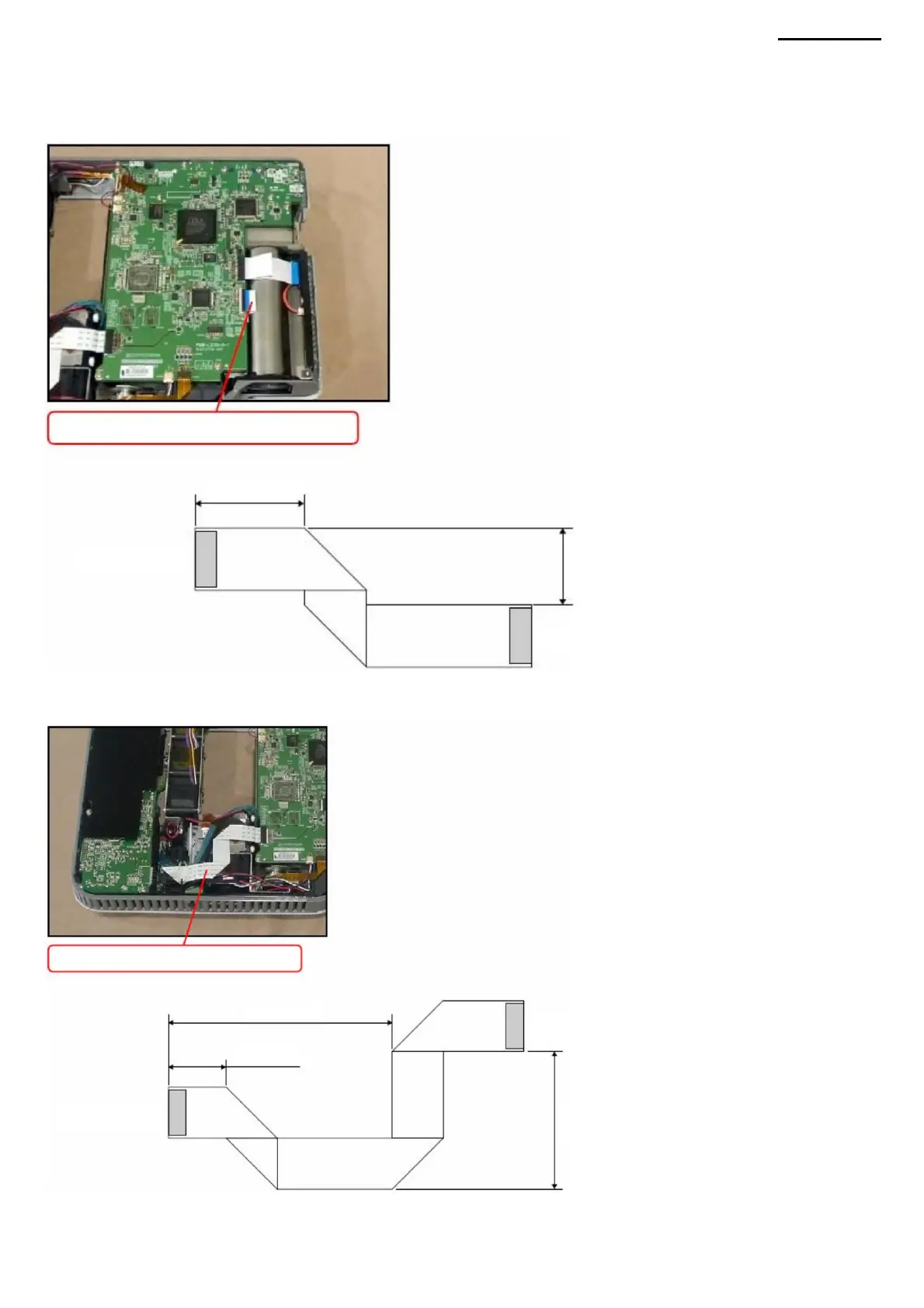

V-1. When replacing the FFC cable (PWB-1 BOARD/PWB-3 BOARD) with a new one, bend it to the shape according to the
size shown in the following figure.
XJ-A240/A245
V-2. When replacing the FFC cable (PWB-1 BOARD/PWB-7 BOARD) with a new one, bend it to the shape according to the
size shown in the following figure.
V. PRECAUTIONS WHEN REPLACING THE FFC CABLE
-42-
17.8mm
SALARY PWB-1
SALARY PWB-1
FFC (BOARD PWB-1/BOARD PWB-3)
25.0 mm
16.0 mm
FFC (BOARD PWB-1/BOARD PWB-7)
SALARY PWB-7
SALARY PWB-3
37.8mm
62.0 mm
