Casit KEQS08 - 6 Time learning; 6.1 Time learning: STANDARD WAY

-14-
KEQS08
Technical Manual
1

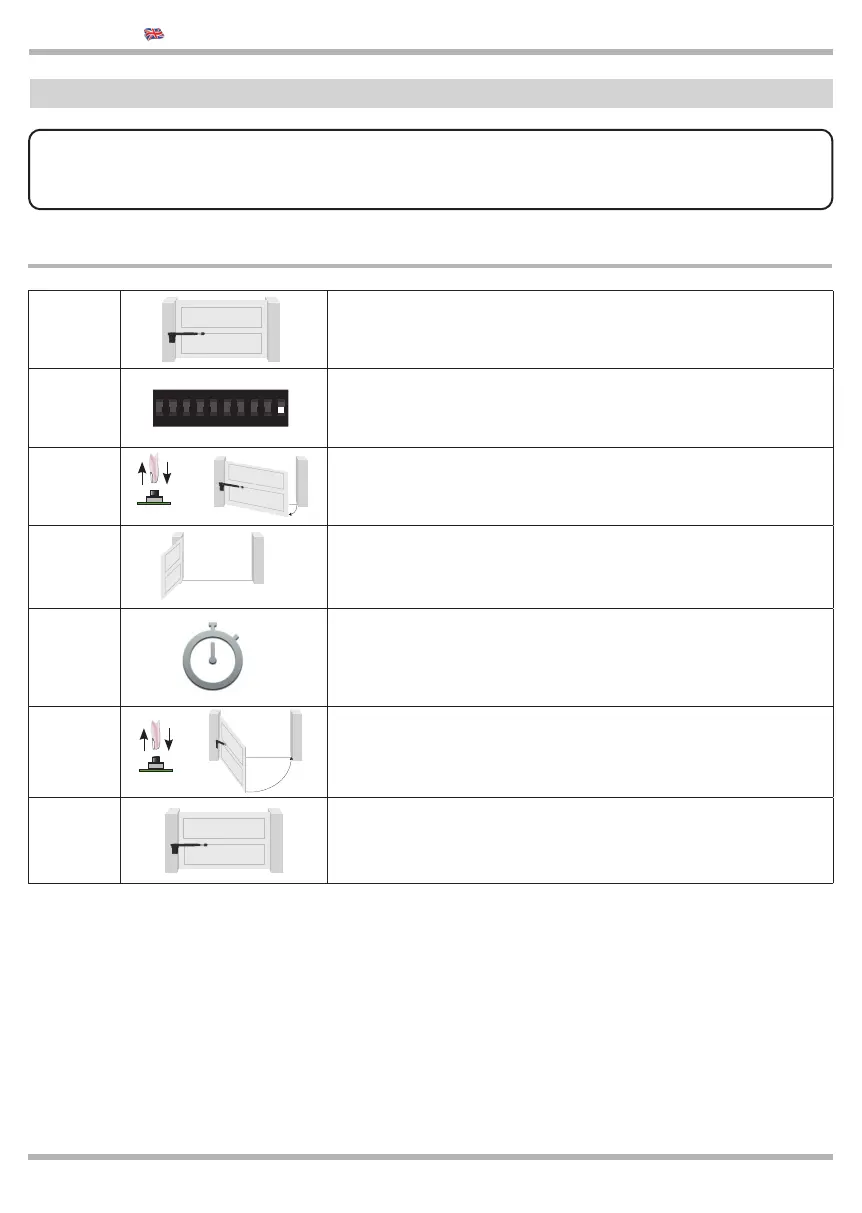

The gate is in closed position
set the control board in Semiautomatic mode
(DIP 1A OFF - DIP 2A ON - DIP 7B OFF)
2 Put in OFF the switch no. 10 of the DIP A
3
Push the button TEMPI *
The motor OPENS
4
Wait that the fi rst leaf is open,
if the limit switches are available read from point no. 6
otherwise press the button TEMPI to stop the fi rst leaf.
5
When motor stops,
let the time leave until the gate should be opened
(pause time)
6 >
Press the button TEMPI (times) to close.
First leaf starts opening
7
Wait the gate is closed,
Working time memorization completed
>
ON CTS
2
1
43 6
5
87 10
9
* When you press button TEMPI for the fi rst time you can use a START command from terminal no.16 or from a
remote control
6 Time learning
6.1 Time learning: STANDARD WAY
TEMPI
STOP
TEMPI
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
IF YOU DON’T USE AN ENCODER:
SET THE SPEED WITH THE TRIMMERS
!
