Casit KEQS08 - 6.4 Time learning: ADVANCED SYSTEM

-16-
KEQS08
Technical Manual
The gate is in closed position
set the control board in Semiautomatic mode
(DIP 1A OFF - DIP 2A ON - DIP 7B OFF)
1 Put in ON the DIP 10A Gate is closed
2 * Push the button TEMPI The motor OPENS
3
Push the button TEMPI (or START)
... If the slowing down is activated...
trimmer V RALL
The motor opens slowly
4
Push the TEMPI button (or START)
(if the opening limit switches is not
available).
Motor stops, starts the pause time
5
... If the limit switch is available
wait until the motor stops
motor stops, the counting
of the pause time starts
Let the pause time run…
7 Push the TEMPI button (or START) The motor CLOSES
8
Push the TEMPI button (or START)
if the slowing down is activated
(trimmer see V.RALL)
The motor closes slowly
9
Push the button TIMES (or START)
... if the closing limit switches no.1 is not
available...
Motor stops. Advanced learning
time completed
10
... if the limit switches is available wait
motor stops
Motor stops. Advanced learning
time completed
ON
CTS
2
1
43 6
5
87 10
9
>

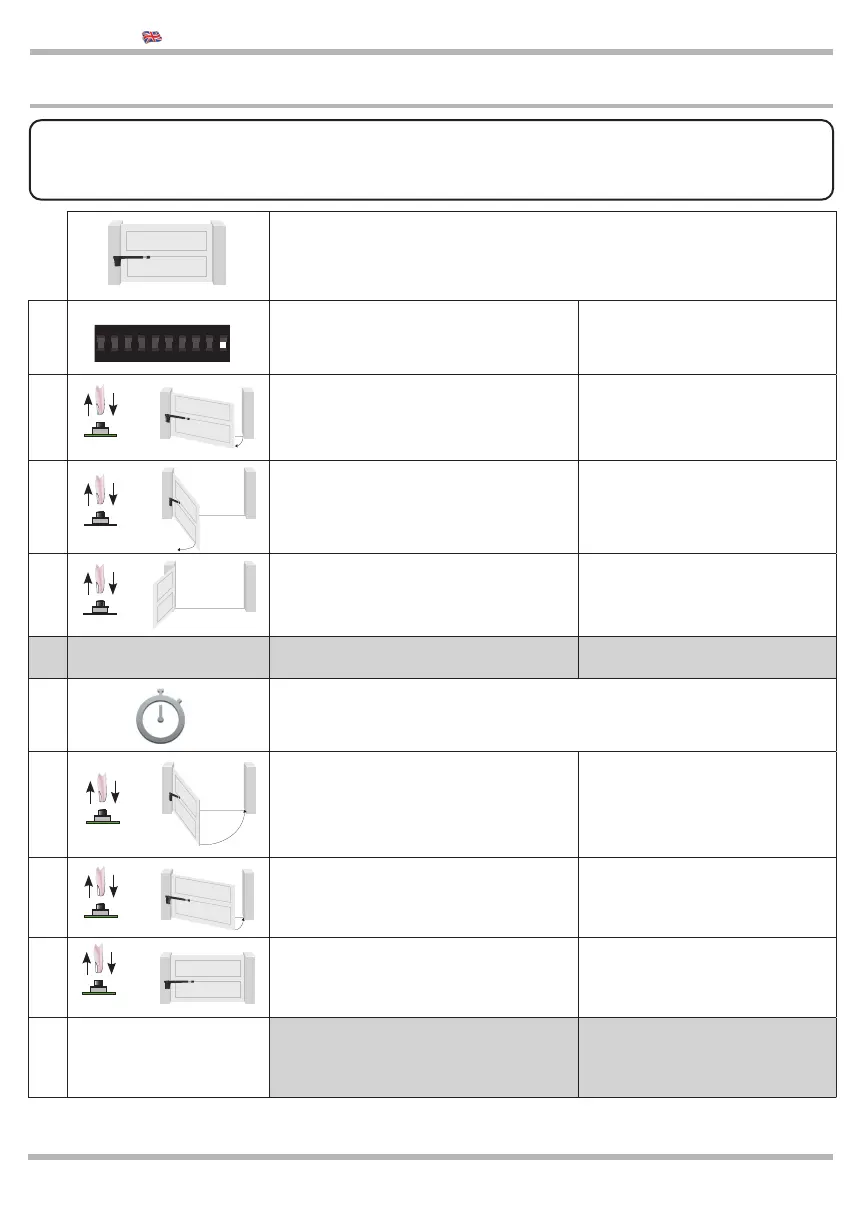

6.4 Time learning: ADVANCED SYSTEM
>
TEMPI
TEMPI
RALL.
>
TEMPI
STOP
TEMPI
>
>
TEMPI
RALL.
>
TEMPI
* When you press button TEMPI for the fi rst time you can use a START command from terminal no.16 or from a
remote control
IF YOU DON’T USE AN ENCODER:
SET UP THE SPEED WITH TRIMMERS
!
