Casit KEQS08 - 2.3 Connection of the 230 Vac SIGNAL LIGHT; 2.4 Connection of one 24 V LIGHT for open or moving gate; 2.5 Connection of the COURTESY light; 2.6 Power supply of the ACCESSORIES

-6-

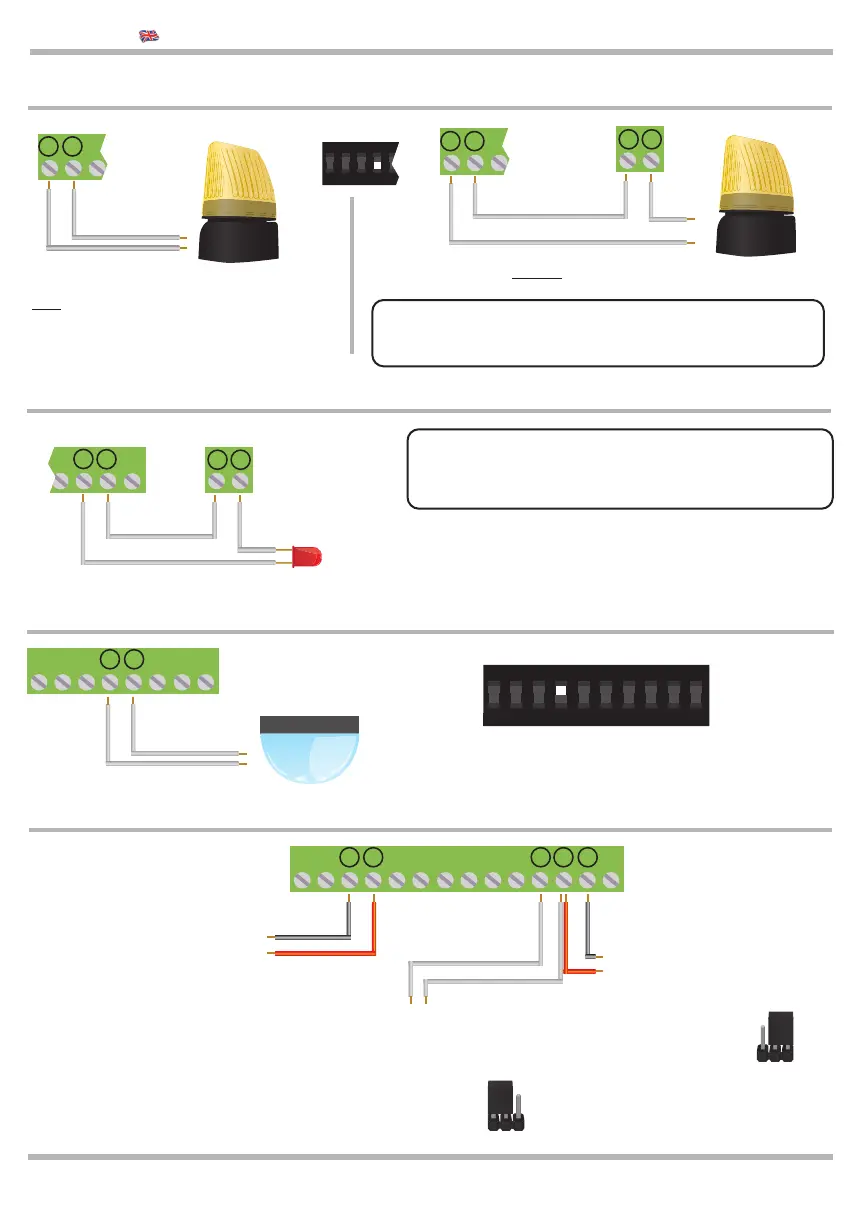

2.3 Connection of the 230 Vac SIGNAL LIGHT
Signal light
with fl ashing control card
Signal Light without fl ashing control card
DIP 4 - OFF
ON
2
1
43
5
If you use the photocells test,
or a 24V light, this connection cannot be used.
!
2.4 Connection of one 24V LIGHT for open or moving gate
If you use the photocells test,
or a 24V light, this connection cannot be used.
!
2.5 Connection of the COURTESY light
LIGHT
230 Vac
DIP 4 - ON
2.6 Power supply of the ACCESSORIES
18 19 20 21
24 25
3 4 5
3 4 5
24 25
KEQS08
Technical Manual
Terminal board 10 (-) / 11 (+)
Voltage: 12 Vdc
Maximum current: 50 mA
Put JUMPER
JAC/DC as shown
in the picture
Terminal board 19 (+) / 20 (-)
Voltage: 24 Vdc
Max current: 300 mA
8 9 10 11 12 13 14 15 16 17 18 19
Terminal board 18 / 19
Voltage: 24 Vac
Max current: 300 mA
Put JUMPER
JAC/DC as shown
in the picture
+
-
-
+
!
!
AC DC
ON
2
1
43 6
5
87 10
9
Terminals 3 and 4 are powered when the gate is
opening up to 2 min. after gate closing
1 2 3 4 5 6 7
20 21
AC DC
