Section C. ACS Operations Overview
No. 1-5 Can Filling
Buttons
Opens valves on both beer spouts at the
numbered position
Opens can gate on conveyor
Conv. Motor Off/On
Switch
Starts or stops the conveyer, depending
on position
Opens under lid gas purge
When held down the fill head will lower
fill head into the down position, when
released the fill head will return up
Opens pre-rinse water supply
Opens all 5 fill stations
Table 3 HMI Panel – Filler Page – Button Functions
C.2.3 HMI Panel – Seamer Page
Manually Control all aspects of the seamer. Table Up/Down, Die1/2 in-out, Push Cylinder #2, Seamer Motor Control.

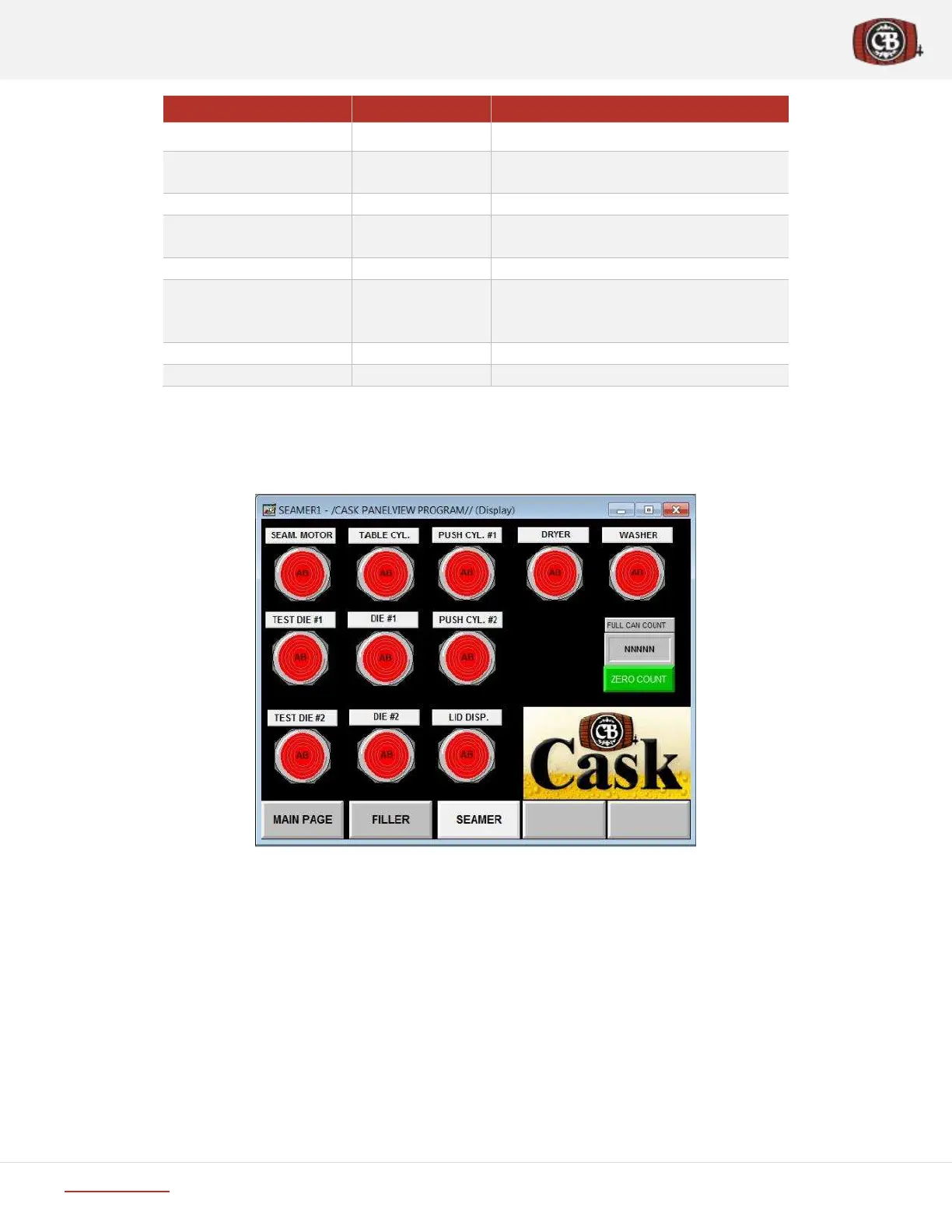

Figure 9 HMI Screen – Seamer page screenshot
