5

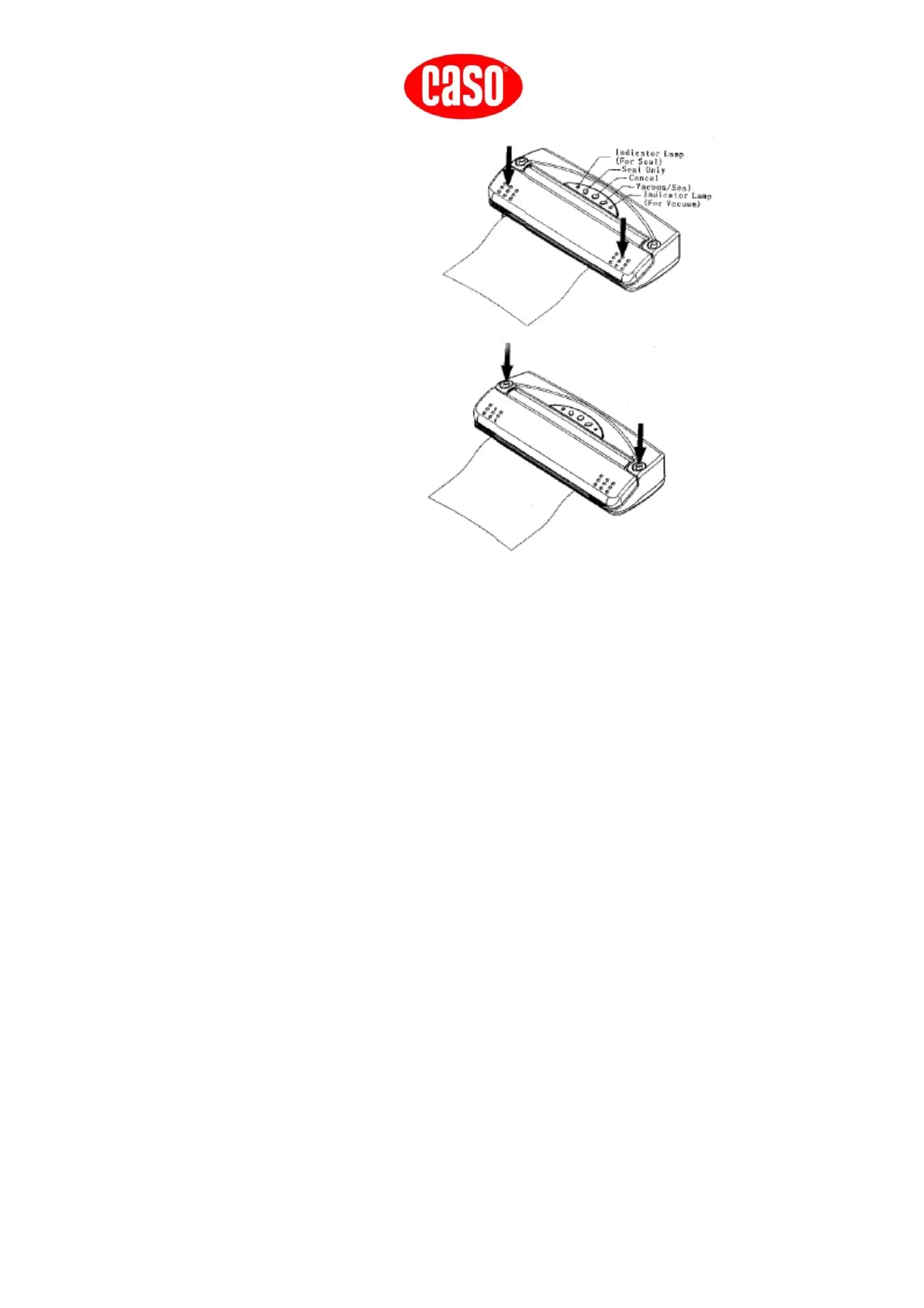

Step 2: Press the cover down
Step 3: Press for release
(after sealing process)
Making a bag using the bag roll
Place the unit on a dry place. Make sure the working area in front of the unit is free of obstacles and
wide enough to accommodate the food bags.
1. Plug the unit into 230V~ power source – now the unit is ready for operation.
2. Make sure that the bag you want to use is at least 8cm/3.1in. longer than the food. Add another 2
cm/0.8in. each time the bag is re-used.
3. Unroll the bag to the desired length and cut the bag to the appropriate length with precise and
clear cut. Open the lid and put one end of the bag on top of the black rubber strip, then close the
cover (see Step 1).
4. Press the cover down heavily on both sides by the dotted areas using two hands until two click
sounds heard (see Step 2).
5. Press the “Schweißen”-Button and the red LED control light starts flashing.
6. When the LED light turns off, the bag is sealed.
7. Now you have a custom-sized bag.
Preserve food with vacuum:
1. Put the food that you want to preserve inside the bag.
2. Clean and straighten the open end of the bag, make sure that there are no wrinkles or ripples on
the panels of the open ends.
3. Remove any unwanted liquids or food residue from the inside of the bag.
4. Make sure that both panels of the bag are located within the rippled area (vacuum plate), but
below the round post which is the vacuum pump hole to ensure no vacuum leaking.
5. Close the cover and then press heavily on both sides of the cover in the dotted areas until two
click sounds heard.
6. Press the “Vakuum”-button then the bag will be automatically vacuumed and sealed.
