Cassese CS 89 - CS 89 Air Line Fittings

3
The CS 89 is to be connected to the air
source under its lower grey plate, at the
level of air valve V.
Then turn the air valve V to ON. Make sure
that the air pressure shown on the
manometer is 6 bar (85 p.s.i.) otherwise
correct it with the regulator D.
D
V
EMERGENCY
STOP
Manometer

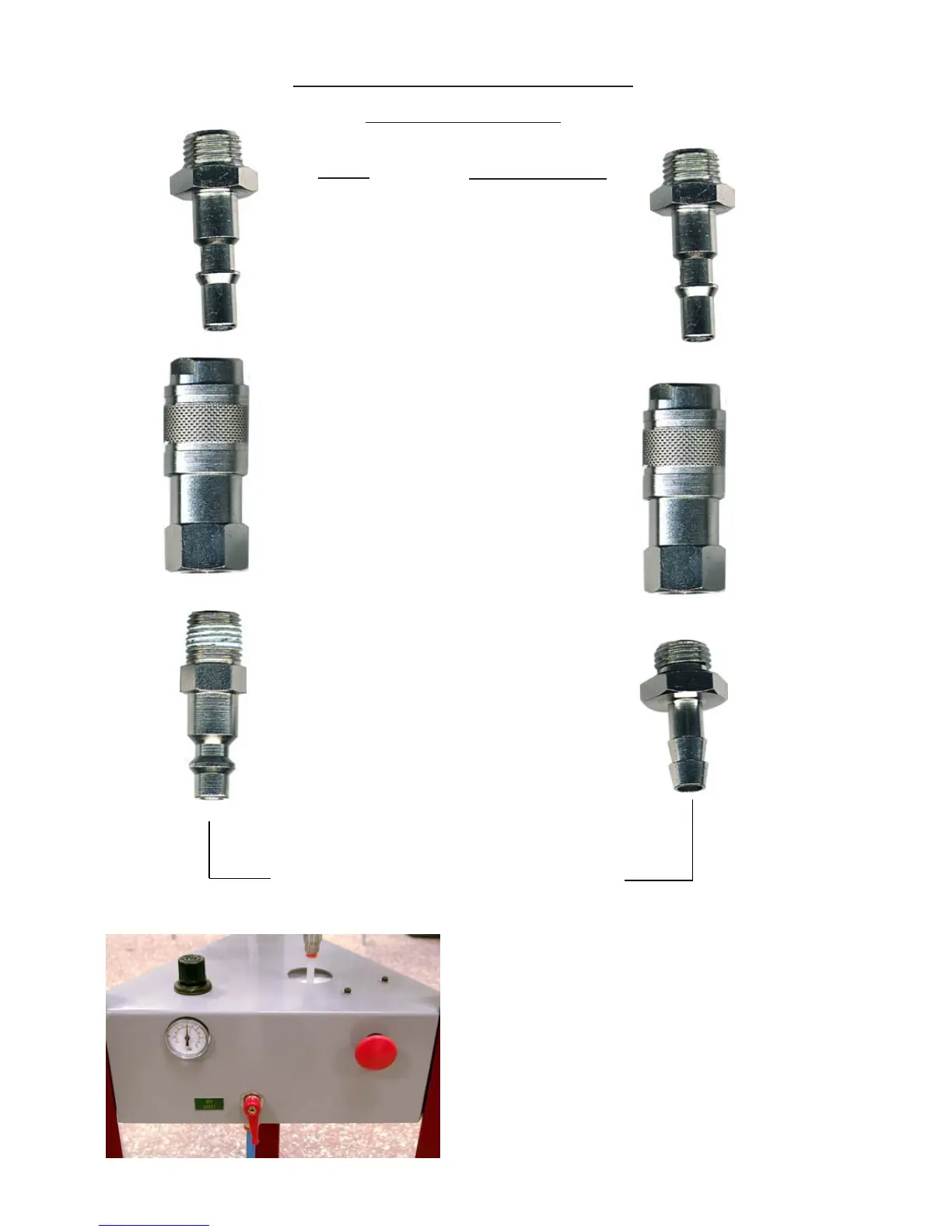

CS 89 AIR LINE FITTINGS
USA
AIR SOURCE (compressor)
Male Connector
on Machine
Q/R US male
connector
quick release (Q/R)
female air connector
Standard hose
connector
Z 675
Z 675
Z 749
Z 701
Z 556
STANDARD
Advised way of fitting :
