CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/

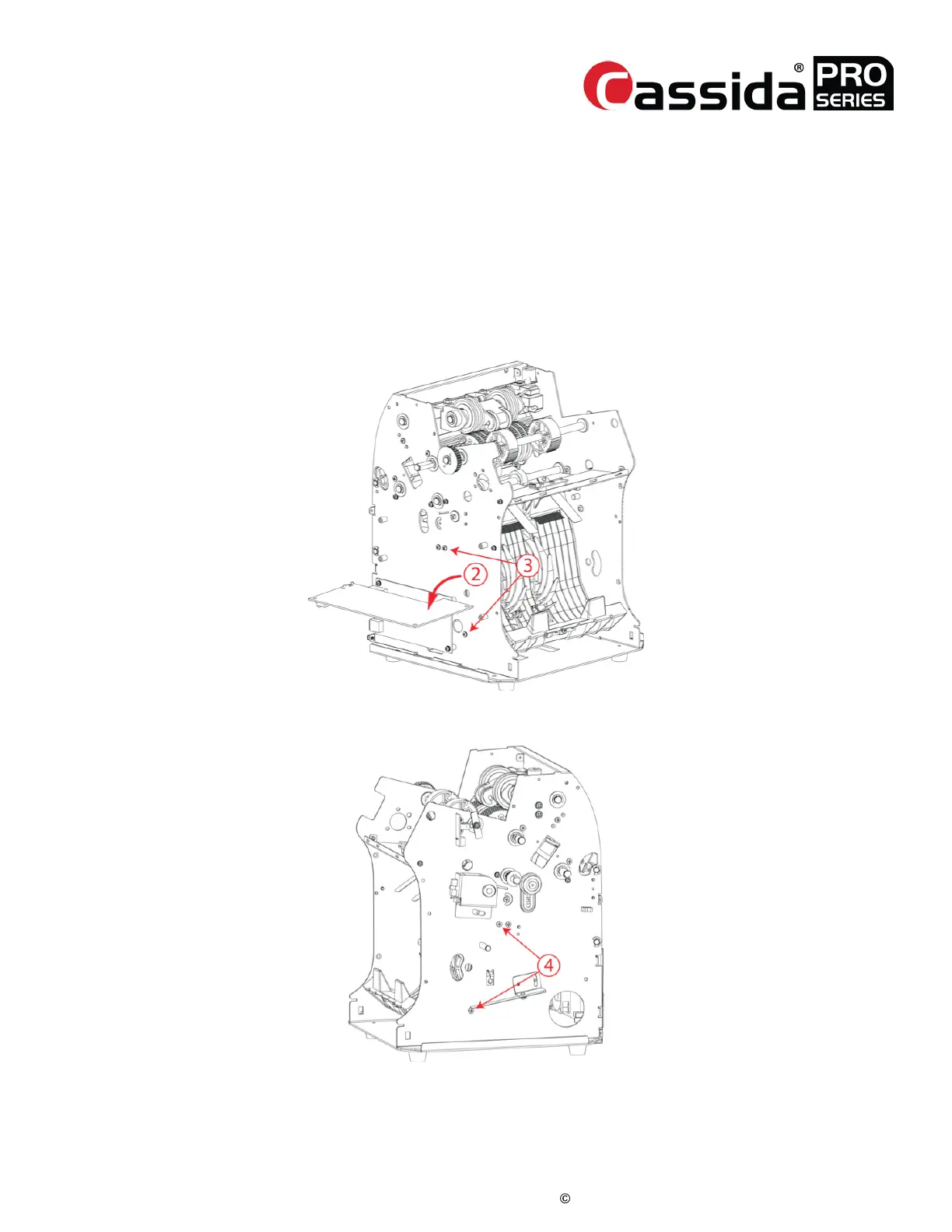

DISASSEMBLE ASSEMBLY_STACKER
(Assembly Stacker)
1) Disconnect the wing motor harness and the STACKER_HARNESS_1WAY
2) Disassemble PBA_MECHA and turn it down, disconnecting any harnesses attached to
PBA_MECHA as necessary to reach screws behind board
3) Loosen 2 screws (M3x6 tap) on Left Side
4) Loosen 2 screws (M3x6 tap) on Right Side
4.14.
To Next Page
