PBA_MECHA — DOUBLE SENSOR CALIBRATION
When the PBA_MECHA is replaced, Double sensors should be calibrated.
1. Go into Test Menu -> [1. Diagnosis] -> [7. Sensor Detail]
2. Adjust the variable resisters confirming the double level is in 2000 ~ 3500
ranges.
3. Open the Upper door and check the double levels. They should be 4095. If
not, repeat Step 2.

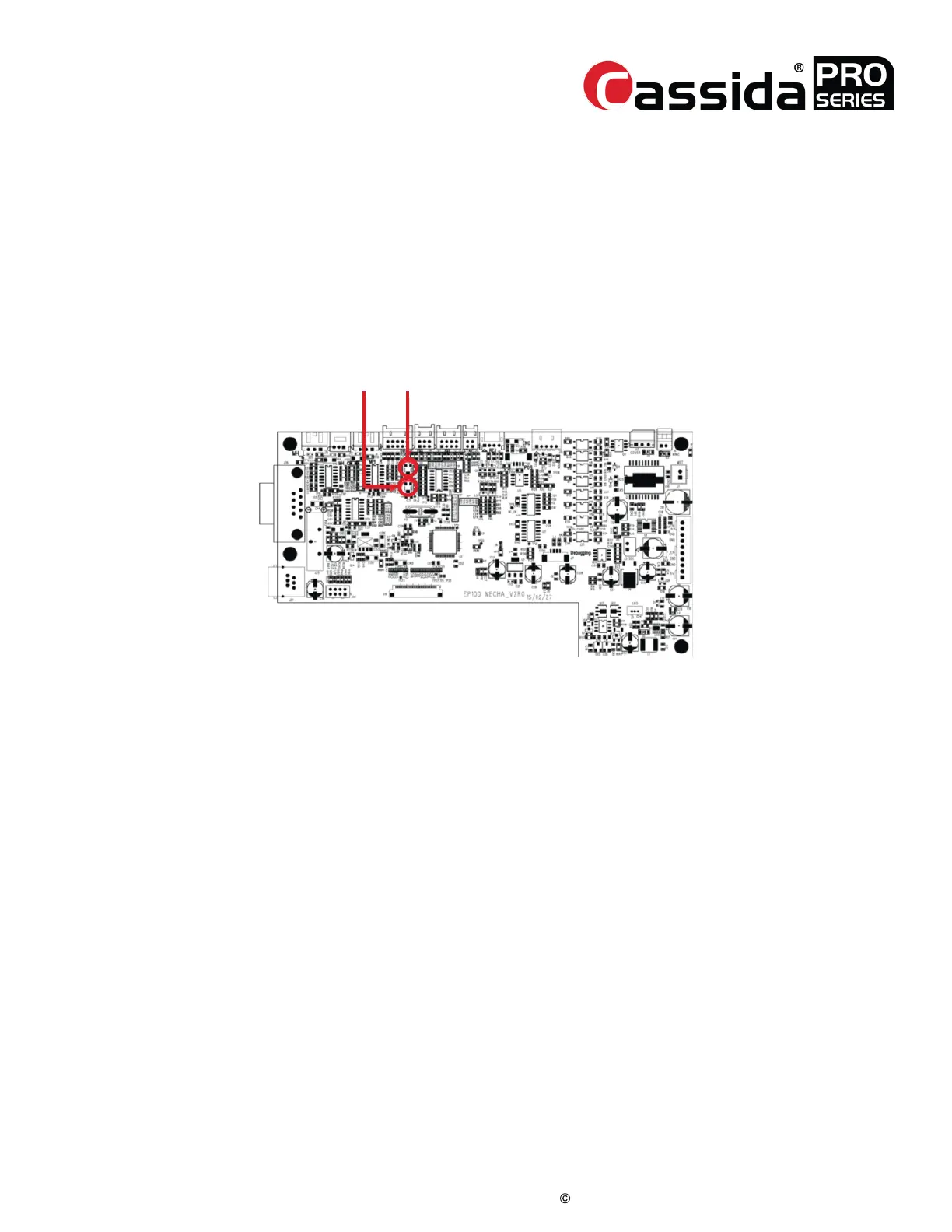

VR1
(Right)
VR2
(Left)
PBA REPLACEMENT 4.15.
