CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/
REPLACEMENT GUIDE_REJECT_POCKET
(Reject Pocket Film)

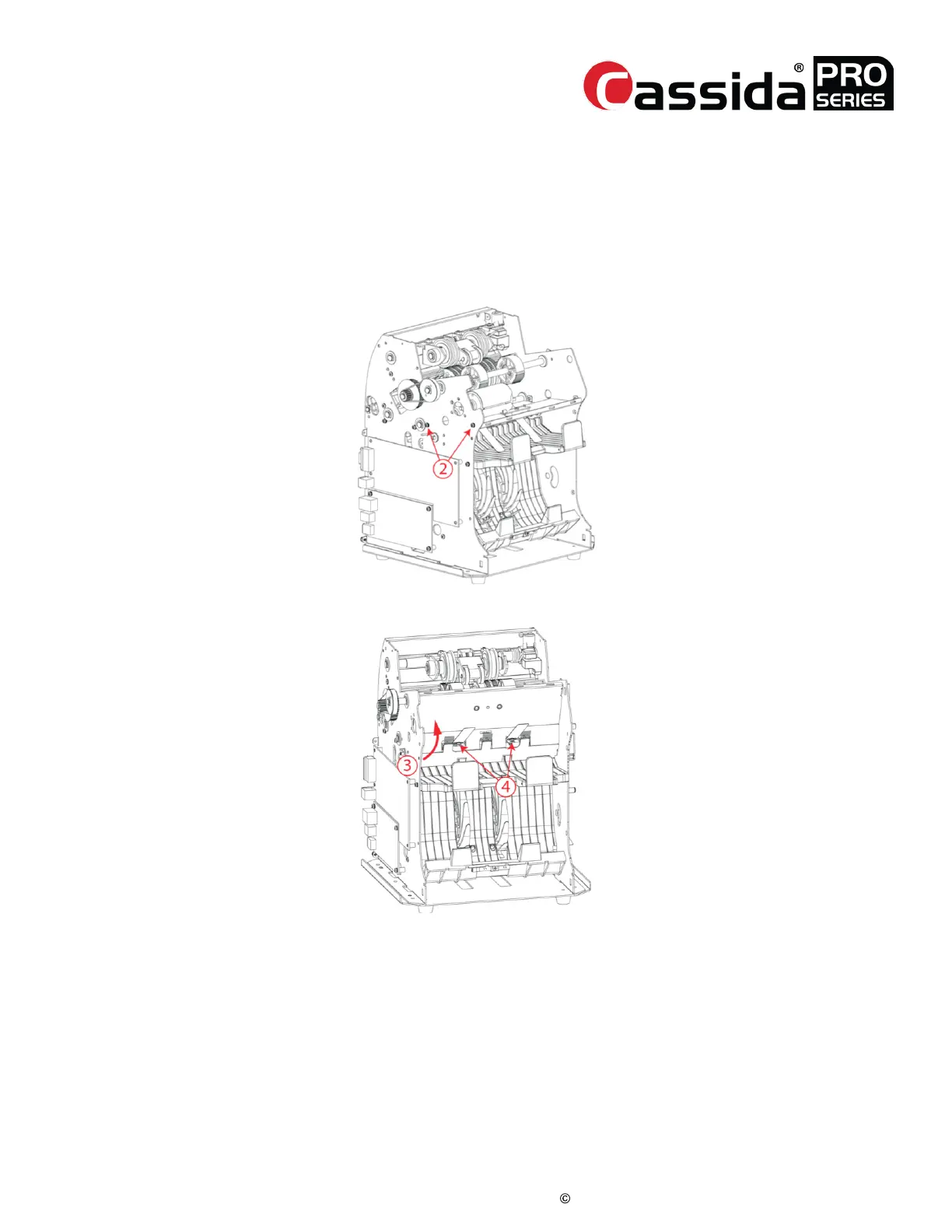

1) Disassemble according to 2-1, 2-2, 2-3, and 2-9
2) Loosen 4 screws (M3x6 SEMS) on both sides
3) Tilt up the ASSY_REJECT_PLATE
4) Loosen 2 screws (M3x6 SEMS)
4.17.
To Next Page
