CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/
READ/ID ERRORS 5.2.
2. If CIS is defective then in Service Menu -> [1] Diagnosis -> [5] Scanning Quality
-> [4] Scanned Image the image may looks similar to [Fig. 3] below. In this case
replace the CIS sensor.
3. CIS or Main board issues may manifest (as shown above
A.) Power off unit
B.) Connect a new CIS to the MAIN board
C.) Place the CIS on a table or flat surface with a bill between the CIS and the
table.
D.) Turn on the power and go into the Service Menu -> [1] Diagnosis -> [5]
Scanning Quality -> [4] Scanned Image
E.) Count a bill. The machine reads an image from the new CIS on the table
rather than the CIS in the machine
F.) If the image looks like [Fig. 1] with an abnormal colored image of RGB
and IR R then it means the MAIN board is functioning correctly
i.) Replace the CIS which is currently installed in the machine
G.) Otherwise if the image looks like [Fig. 4]
ii.) Replace the PBA_MAIN board
H.) Calibrate CIS (R) and CIS (T) once unit is reassembled

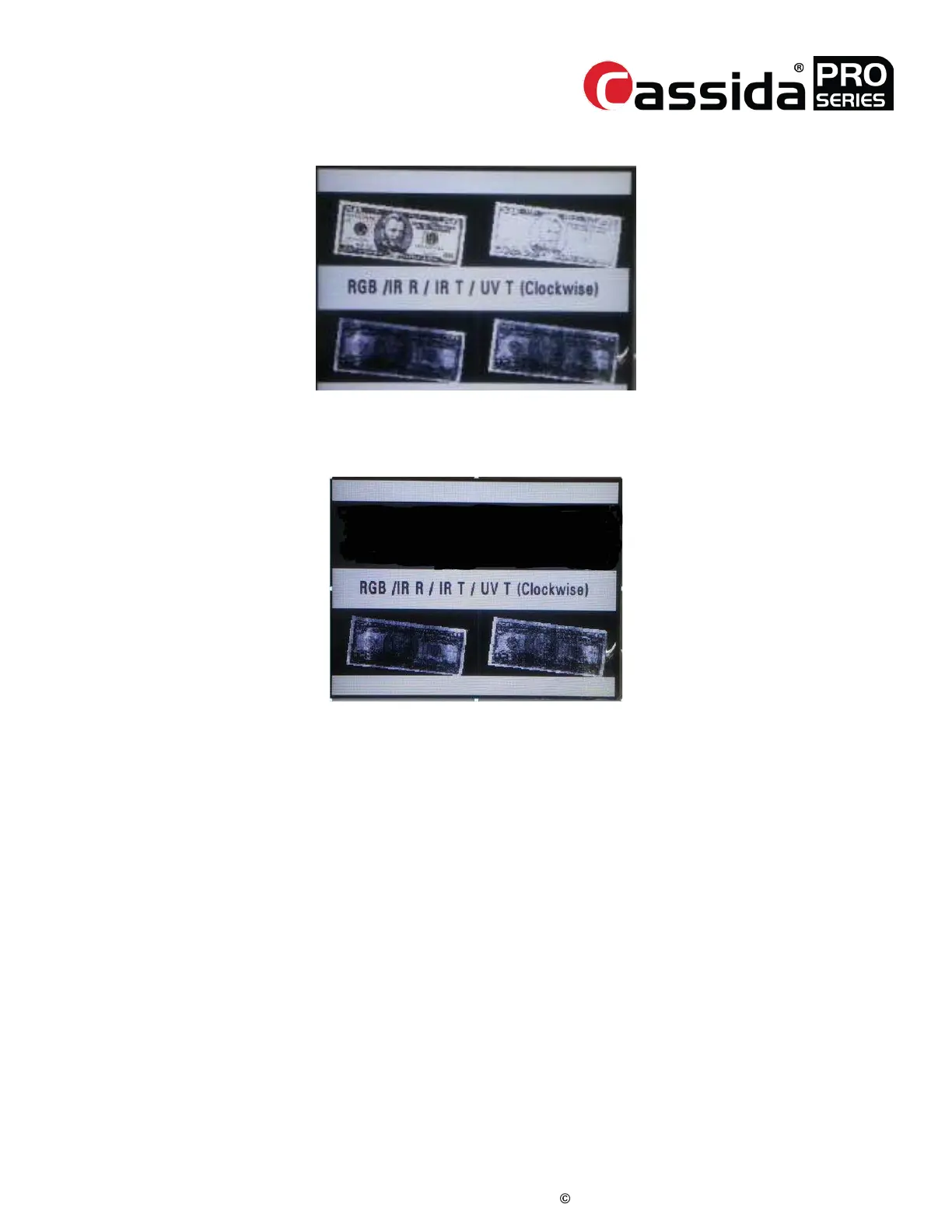

[Fig. 2]
[Fig. 3]
