CATCH DIVERTER Installation
Catch Power GREEN – Installation manual - Page 6
• Maximum load allowed to be connected to HW terminal is 4.8kW.
• Cable sizing must be chosen based on the AS3000 wiring standard.
• The Diverter must be protected from weather. The recommended
installation location is inside the meter box.
IMPORTANT:

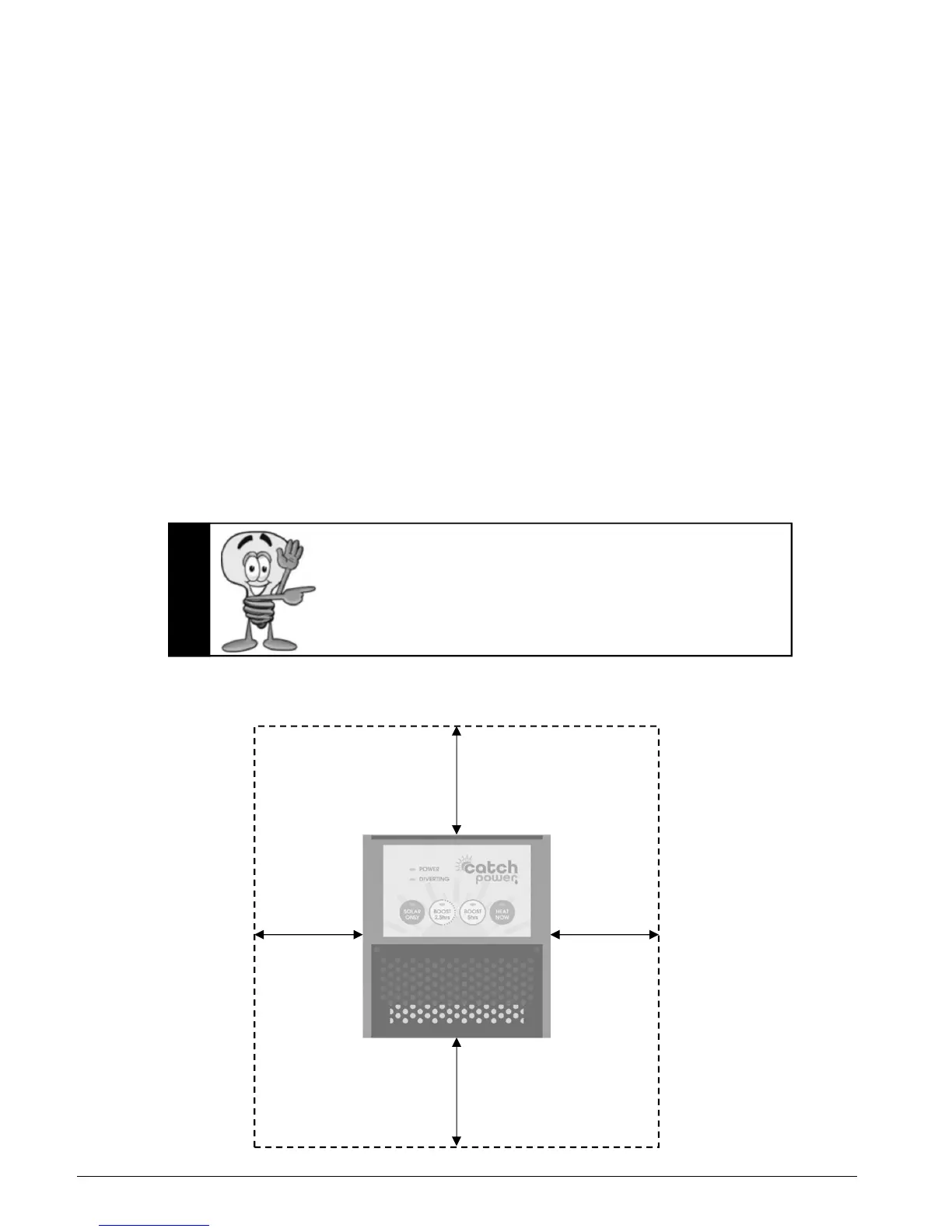

CLEARANCE
30mm
30mm
50mm
50mm
The clearance specifications below are recommended clearances. If the
clearances cannot be achieved the diverter will de rate if needed to
accommodate the installation environment.
IMPORTANT
Case temperature can reach 60
o
C.
Ensure the diverter is not placed next to anything
that can be affected by moderate temperatures.
