Catch Power GREEN – Installation manual - Page 7

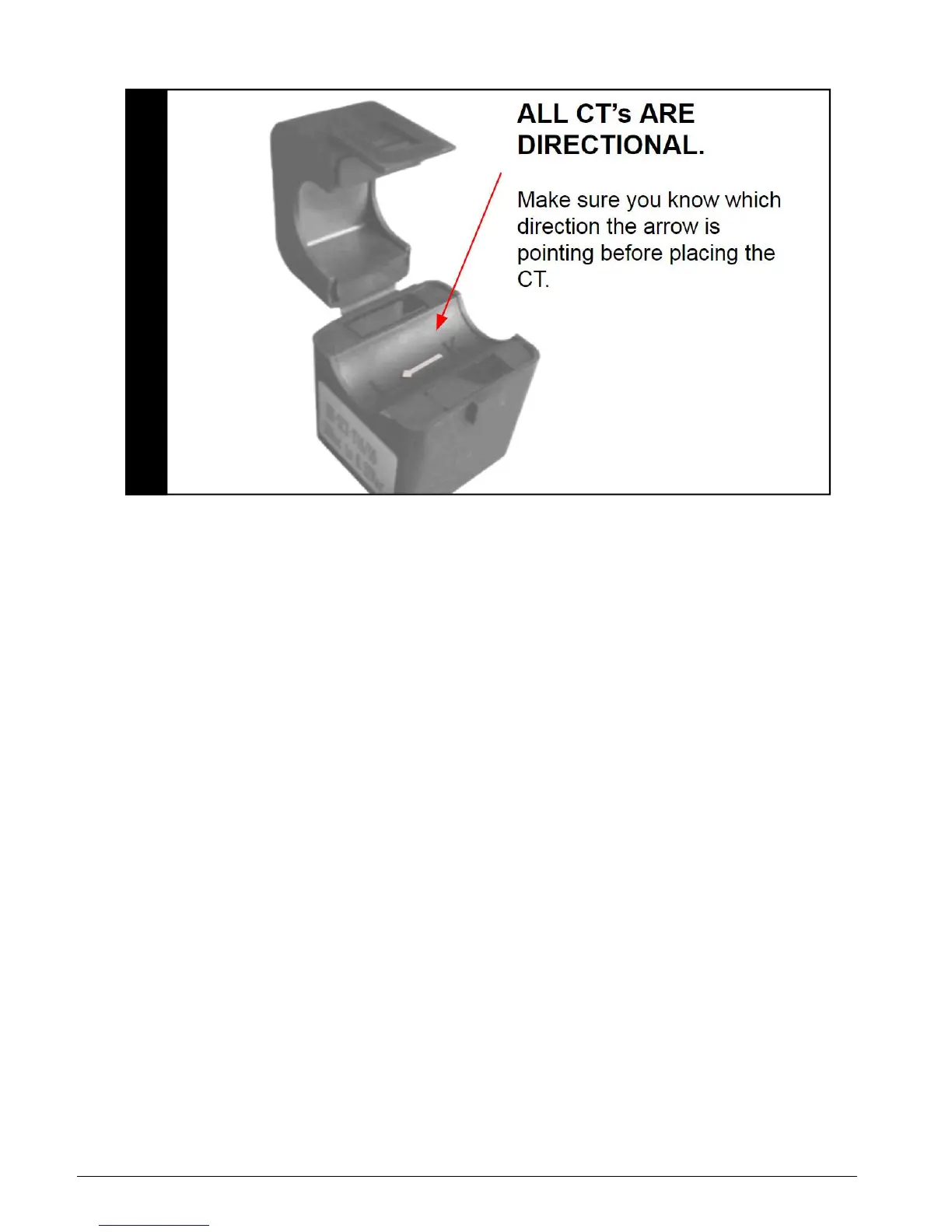

• The arrows next to the CT’s in the wiring diagram represent the
arrows on the inside of the CT’s.
• Matching the CT’s to the correct phase is critically important
special care must be taken to ensure this happens.
• NEVER disconnect CT’s from diverter while they are wrapped
around a current carrying conductor.
• If Controlled Load Off Peak is not available leave the Off Peak
connection empty.
• Multiple wires can be put through the CT, as long as all currents are
in the same direction.
• Some electrical jurisdictions do not allow switches in the Off Peak
circuit, if this is your case then do not connect the off peak circuit.
