2 – Attach Device to Mounting Plate and complete wiring

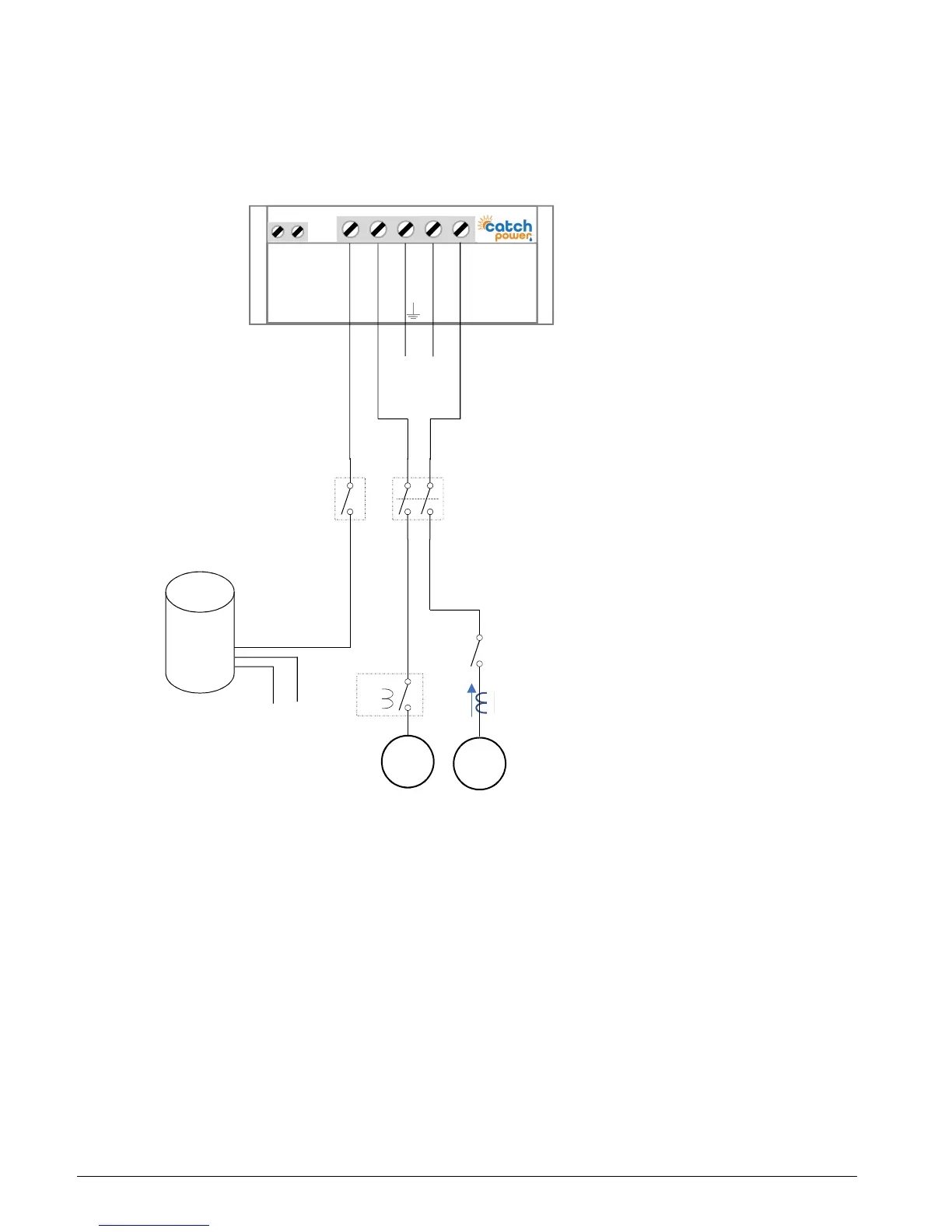

Wire the device into the domestic installation as shown.
H/WATER
OFF PEAK
EARTH
NEUTRAL
MAINS
BLACK
WHITE
CT
20A
Double Pole
Circuit Breaker
Hot Water
Isolator
Hot Water
Service
(4.8kW Max)
Off Peak
Meter
Normal
Meter
FIR
Main
Switch
NE
NE
CT
• All electrical work must be carried out in accordance with AS3000.
• Hot water isolator is not required if 20A double pole breaker
clearly label as hot water.
• Off Peak MUST be on the same phase as the MAINS terminal.
