CaterSense -01 User Manual

GAS SOLENOID VALVE
GSV-1
UNIT POWER
SUPPLY (240 Vac)
N
L
E
REMOVE LINK
FIRE ALARM CONTACT
REMOTE KNOCK-OFF
(open on alarm)
OPTION
DIL SWITCH
SCHEMATIC WIRING
EQUIPMENT SCHEMATIC
CT-01
REMOVE LINK
CT-02
OFF
ON
14
REMOVE LINK REMOVE LINK
(open on alarm)
FAN PROVING
SIGNAL
(see above)
FAN PROVING
SIGNAL
(see above)
DRAW BYDRAWIG o:DATE:
01 2 3 4 5 6 7 89
NOTES:
1) LOCAL ISOLATION MUST BE PROVIDED IN ACCORDANCE
WITH THE CURRENT EDITION OF THE IEE REGULATIONS.
2) CHECK MANUFACTURER'S WIRING DETAILS FOR CORRECT
CONNECTIONS AND SET-UP REQUIREMENTS.
3) ENSURE THAT THE SWITCHED POWER IS CORRECTLY FUSED
TO THE LOADING OF THE CATERSENSE AND PLANT ITEMS.
NLE
E
L
N
LOCAL 240Vac
SWITCHED FUSED
POWER SUPPLY
(See Note: 3)
POWER SUPPLY
NLE
OUT
GAS VALVE
NLE
LOCAL
ISOLATOR
(See Note: 1)
GAS VALVE
GAS VALVE OUTPUT
WITH POWER SUPPLY FROM CATERSENSE
CATERSENSE UNIT POWER SUPPLY
CIRCUIT BOARD LAYOUT
12/09/12
CATERSENSE -1
WD-01-02-REV1
MAE
CATERSENSE -1 (01-02)

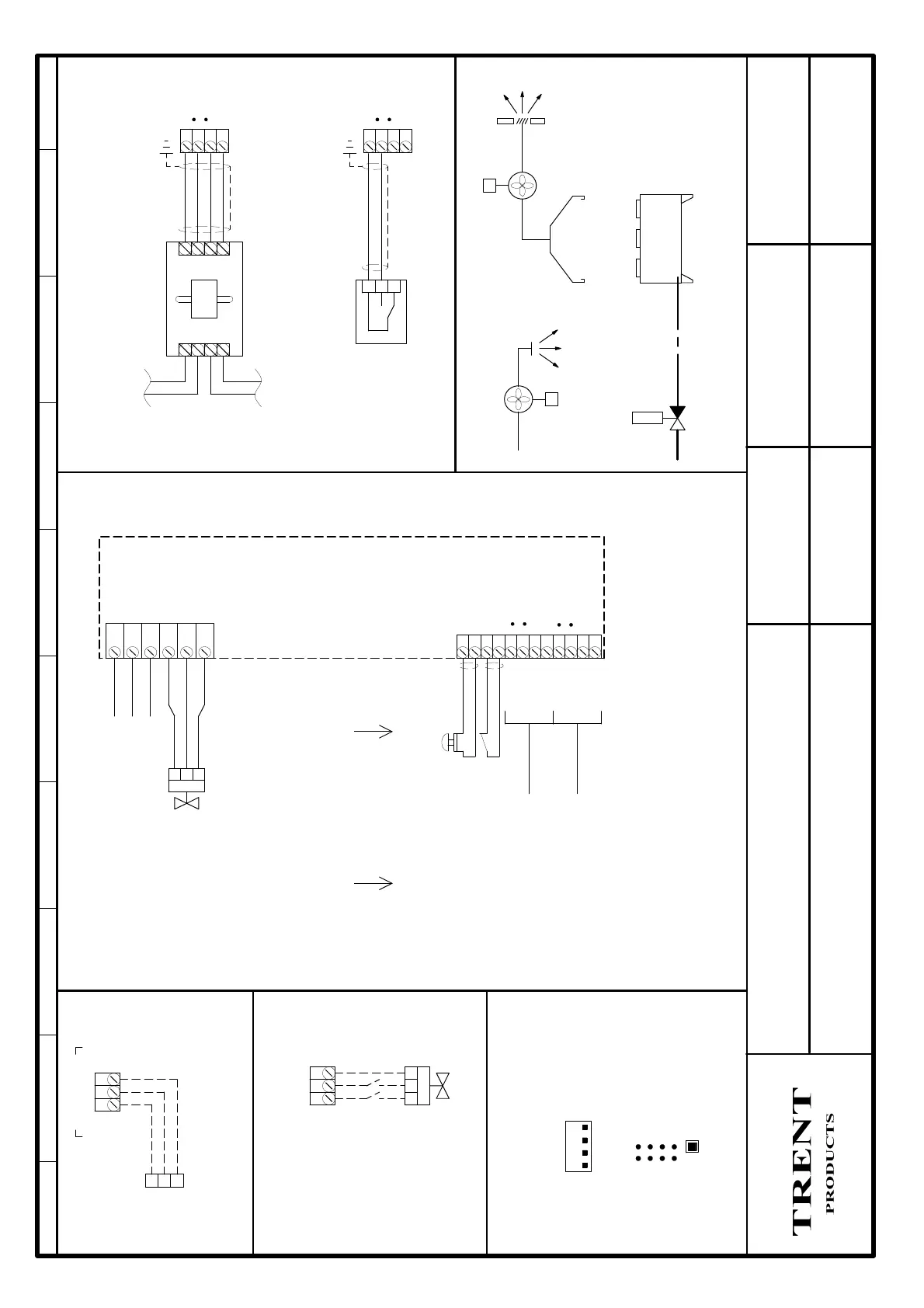

WIRING & CONNECTION DIAGRAM
Tel: 01782 - 844688 Fax: 01782 - 844772
IF IN DOUBT, ASK
1 2 3 4 5 6 7 8 9
10 11 12
29 30 31 32 33 34
SENSOR 1 SENSOR 2
FIRE ALARM KNOCK-OFF
ENGINEERS PIN
31 30 29
GSV-1
EXTRACT FAN
EXTRACT CANOPY
COOKING APPLIANCE
GAS SOLENOID
VALVE
34 33 32
N
N
L
L
E
E
SUPPLY FAN
USE SCREENED CABLE
FOR ALL LOW VOLTAGE
CONNECTIONS
5 6 7 8
L-OUT N N L-IN
4 3 2 1
FAN POWER
WIRING
(by others)
FAN PROVING VIA. CS-RCT-xx (REMOTE CURRENT MONITORING)
5 6 7 8
FAN PROVING VIA. REMOTE VOLT-FREE CONTACT
C
NO
NC
FAN PROVING DEVICE
(by others)
CONTACT CLOSED
TO PROVE FAN
OPERATION
