Unusual Noise (Unusual Noise Synchronized with Pedal Rotation)
T-8-2
Unusual Noise (Unusual Noise Synchronized with Pedal Rotation)
T-8-2

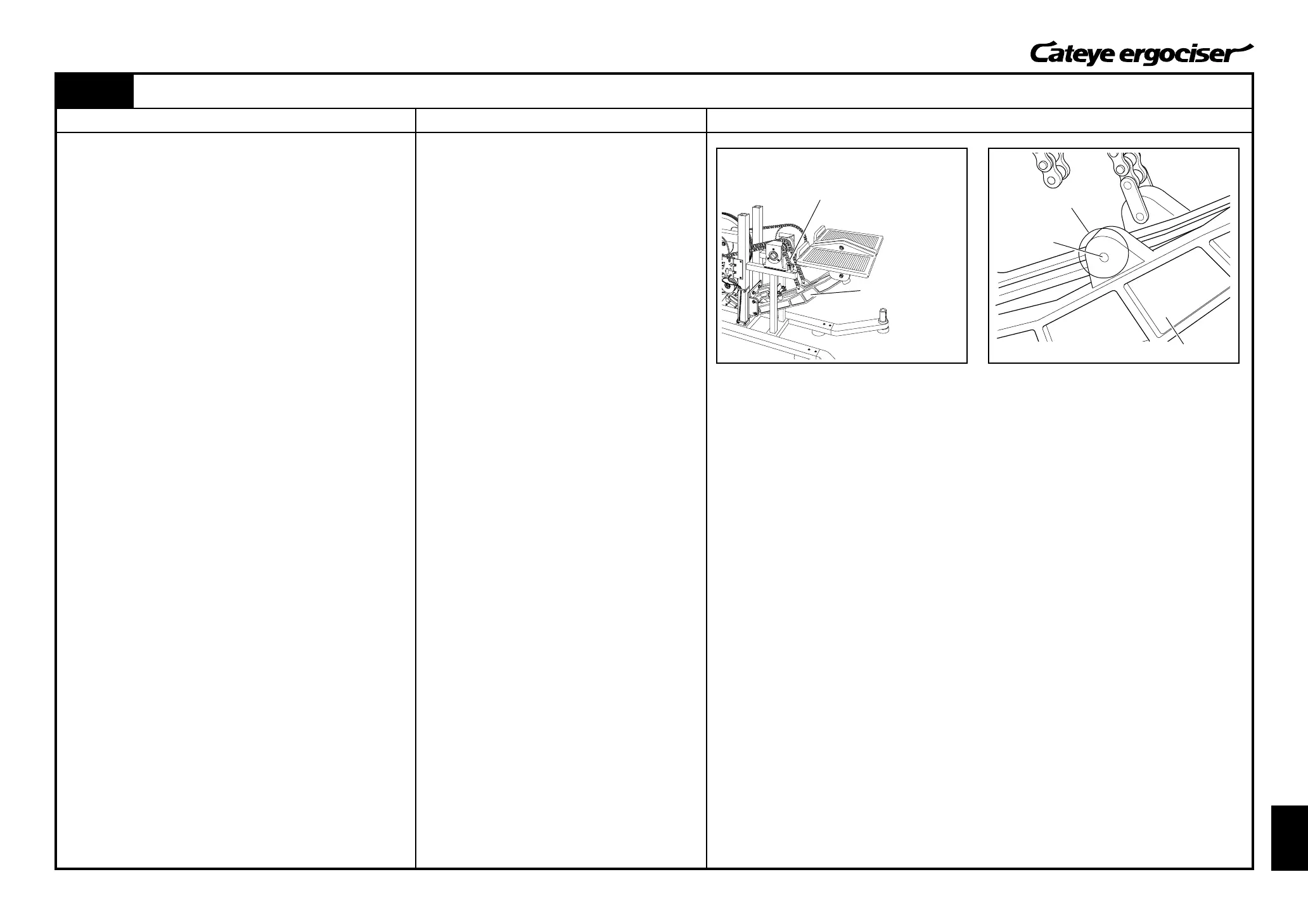

Fig.1
Pedal Chain
Side
<3> Unusual Noise Synchronized with Pedal Rotation
1. Contacting with adjacent parts may be occurring at the follow-
ing areas:
• Pedal Chain
• Linkstep Set
ⓦ You need to take actions as specified in the repair method
(a) described at the right.
(a) Apply grease in the following procedures.
1. Remove the frame cover.
(See [D-1: Removing the Frame Covers].)
2. Apply grease in the following areas. (Figs. 1 and
2)
• Pedal Chain
• Linkstep Set
Link Step Set
Fig.2
Link Step Set
Chain Joint Fixing
Base
