Cateye Ergociser EC-5000 Service Manual
37
ES-8
Correcting the Position of CDC Sensor
ES-8
The positional correction of the CDC sensor should be performed
after removing the frame cover.
(See [D-1: Removing the Frame Covers], [D-2: Mounting
the Frame Covers].)
 Correcting the Position of the Solenoid Coil
1. Rotate the CDC sensor around the screw.
2. Adjustment will be completed when the CDC sensor is posi-
tioned in parallel with the CDC magnet with the condition that
the sensor does not touch the magnet.

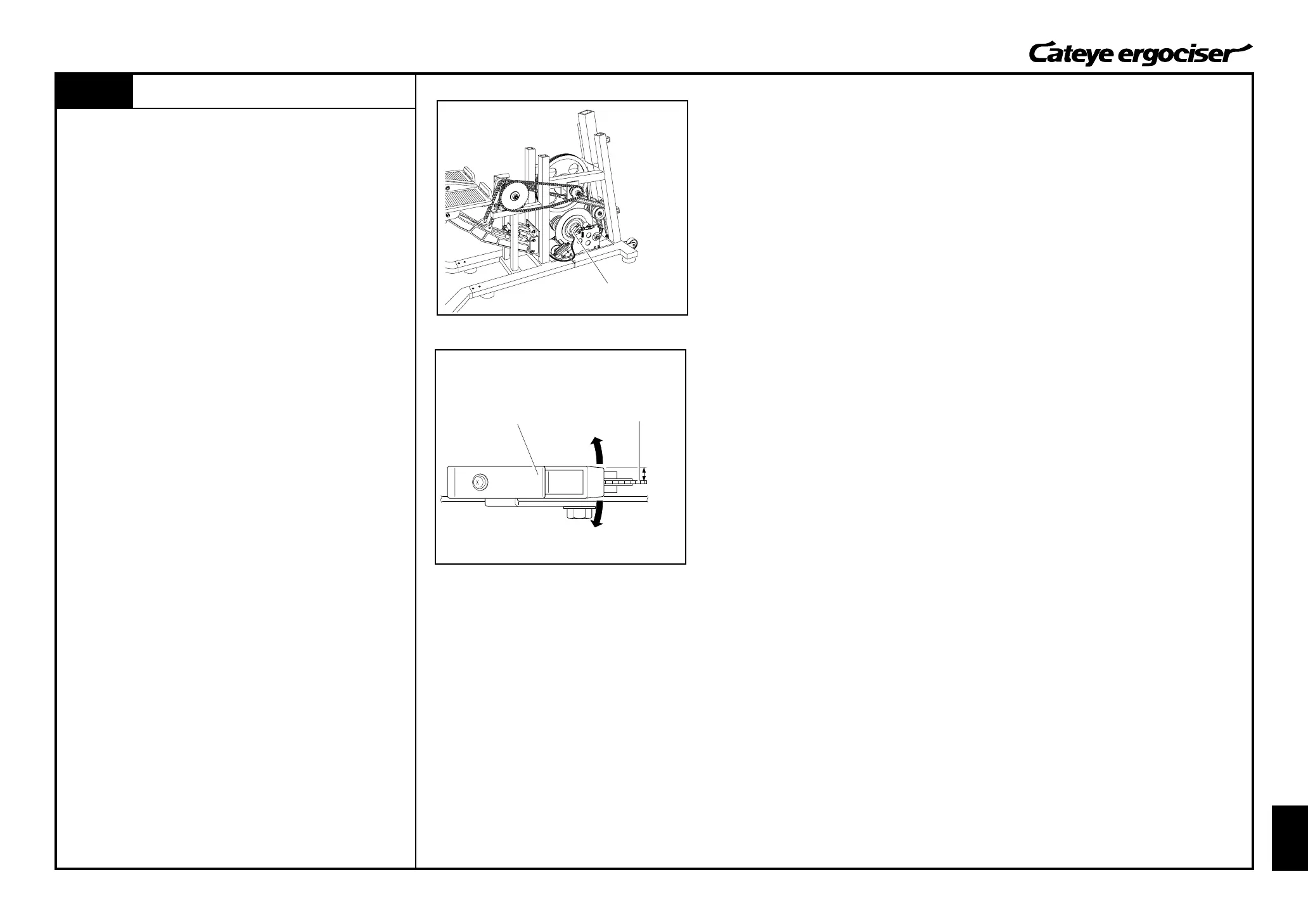

General Figure
Fig.1
CDC Sensor Set
CDC Sensor
Turn Board
Correcting the Position of CDC Sensor
Parallel
