Replacing the Pedal Stopper
MS-13
The replacing procedures are different between the cases with and
without the wrench set.
[1] Without the Wrench Set
 REMOVAL
1. Detach the frame cover.
(See [D-1: Removing the Frame Covers].)
2. Loosen the three-point pan-head screws (two pieces for each
pedal), and detach the pedal stoppers. (Fig. 1)
 ASSEMBLE
1. Mount the pedal stoppers by using three-point pan-head
screws (two pieces for each pedal). (Fig. 1)
2. Mount the frame cover.
(See [D-2: Mounting the Frame Covers].)
[2] With the Wrench Set
 REMOVAL
1. Loosen the three-point pan-head screws (two pieces for each
pedal), and detach the pedal stoppers. (Fig. 1)
 ASSEMBLE
1. Mount the pedal stoppers by using three-point pan-head
screws (two pieces for each pedal). (Fig. 1)

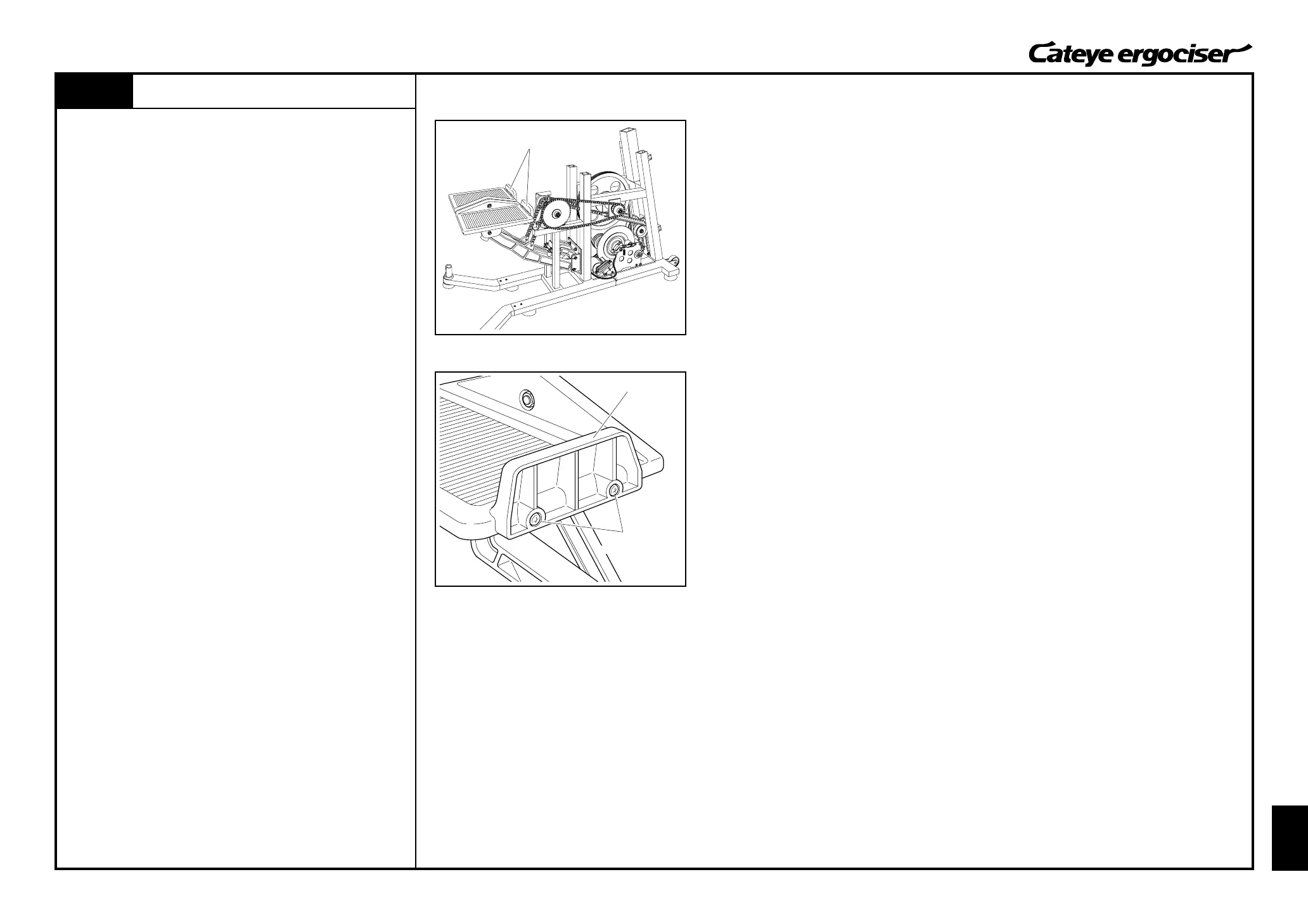

General Figure
Step Stopper
Step Stopper
Fig.1
Three-Point Pan-
Head Screw
Replacing the Pedal Stopper
