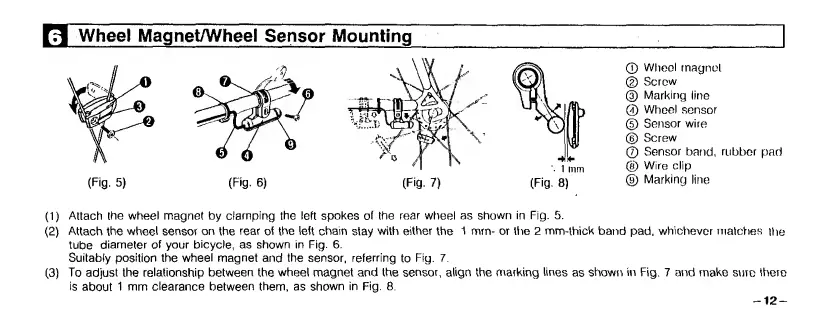

Wheel
Magnet/Wheel
Sensor
Mounting
(Fig.
5)
©
Wheel
rnagnol
©
Screw
©
Marking
line
@
Wheel
sensor
©
Sensor
wire
©
Screw
0
Sensor
band,
rubber
pad
@
Wire
clip
@
Marking
line
(1)
Attach
the
wheel
magnet
by
clamping
the
left
spokes
of
the
rear
wheel
as
shown
in
Fig.
5.
(2)
Attach
the
wheel
sensor
on
the
rear
of
the
left
chain
stay
with
either
the
1
mm-
or
the
2
mm-thick
band
pad.
whichever
matches
the
tube
diameter
of
your
bicycle,
as
shown
in
Fig.
6.
Suitably
position
the
wheel
magnet
and
the
sensor,
referring
to
Fig.
7.
(3}
To
adjust
the
relationship
between
the
wheel
magnet
and
the
sensor,
align
the
marking
lines
as
shown
in
Fig.
7
and
make
sure
there
is
about
1
mm
clearance
between
them,
as
shown
in
Fig.
8.
—12
—
