ET

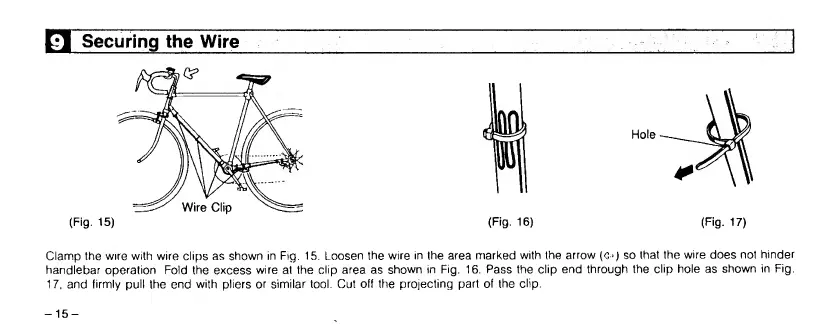

Securing
the
Wire
(Fig.
16)
Hole
(Fig.
17)
Clamp
the
wire
with
wire
clips
as
shown
in
Fig.
15.
Loosen
the
wire
in
the
area
marked
with
the
arrow
(<;>)
so
that
the
wire
does
not
hinder
handlebar
operation
Fold
the
excess
wire
at
the
clip
area
as
shown
in
Fig.
16.
Pass
the
clip
end
through
the
clip
hole
as
shown
in
Fig.
17.
and
firmly
pull
the
end
with
pliers
or
similar
tool.
Cut
off
the
projecting
part
of
the
clip.
-15-
