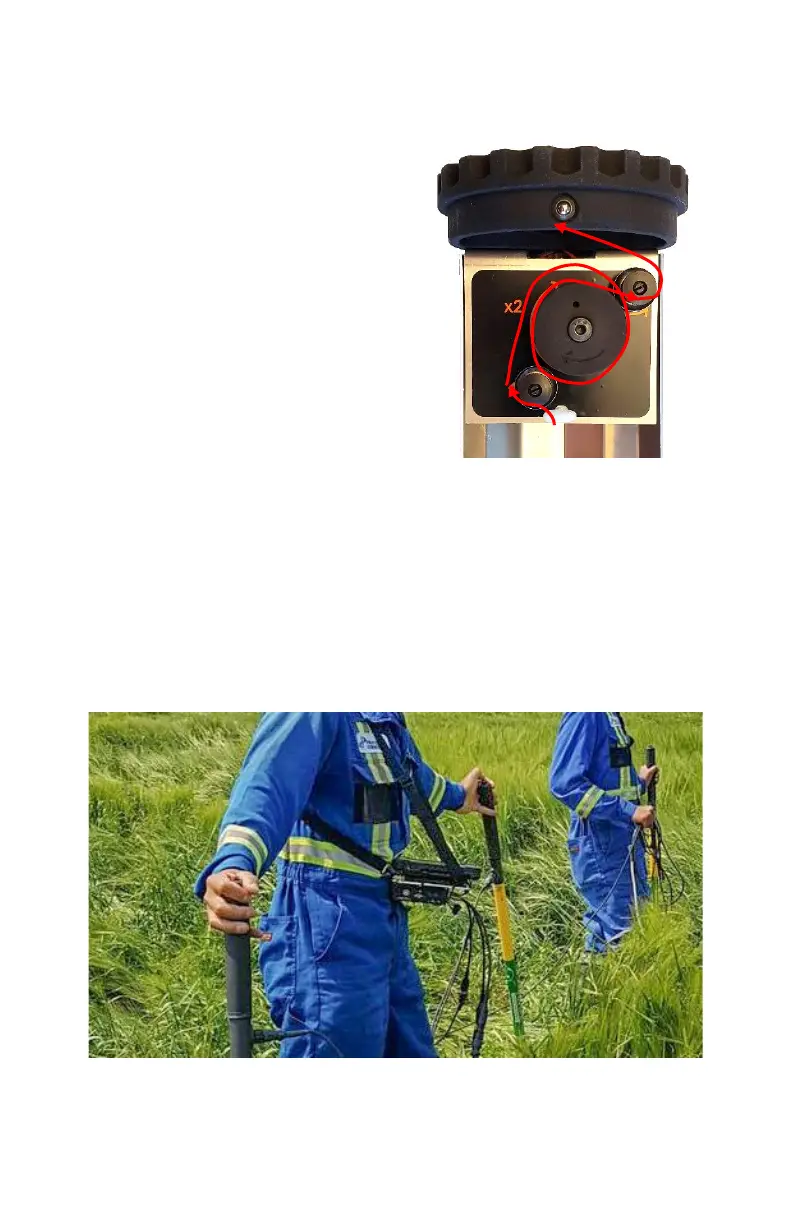

Threading the Wire
From the spool, the wire passes through the
plates of the lower tensioner. Then the wire is
wound clockwise around the drum twice.
Finally, it passes through the plates of the upper
tensioner and out the side of the wire dispenser
to be attached to the pipe at the test station.
Connect the lead from the bottom of the spool
to the terminal at the base of the wire dispenser.
The wire has a fine enamel coating on it that
must be removed with sandpaper to make a
good electrical connection.
