CATH-TECH Hexcorder Pro - Cables

Rev 6 – Feb 2022
Page 37 of 44
Cables
To reuse Hexcorder MM cables, the adapter CTL-270
is needed

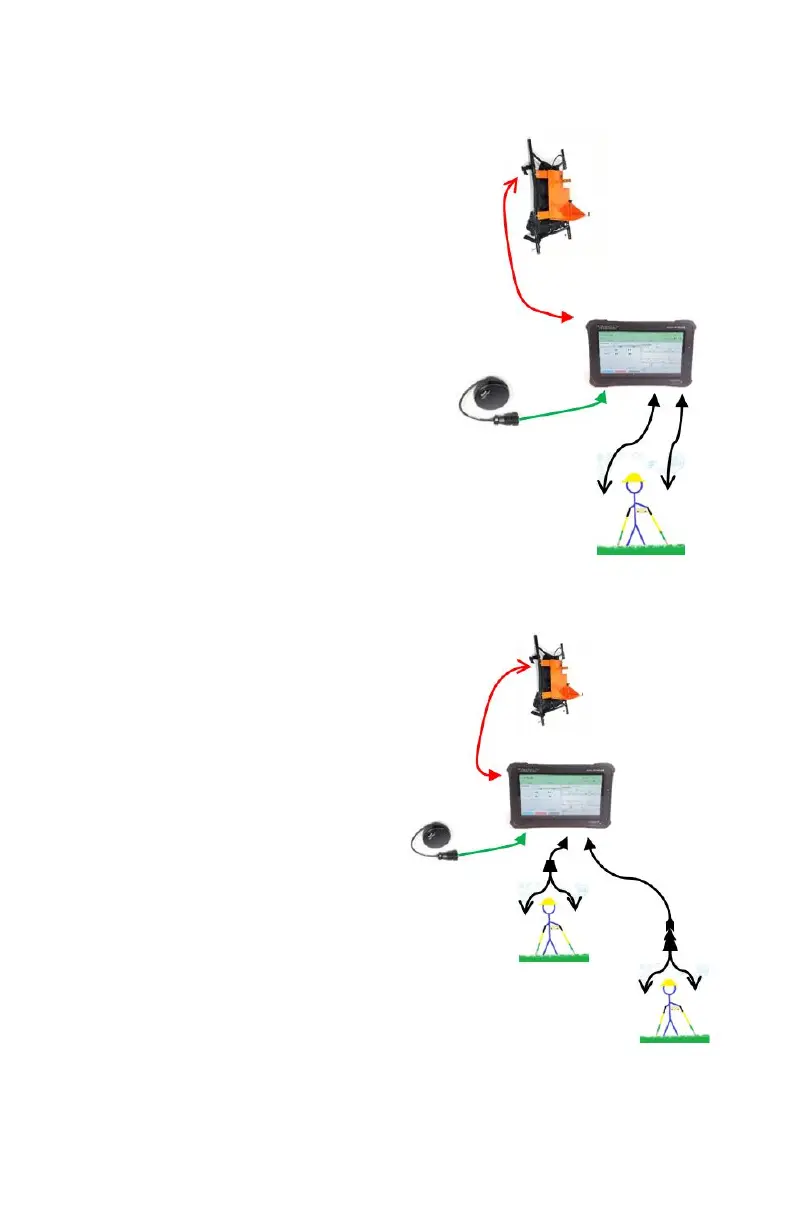

1 Person Survey
As supplied, ready for survey.
Includes:
• CTL-312 GPS
• CTL-267 (or CTL-268) for wire dispenser
• CTL-271, pair, for 2 survey poles
Possible surveys:
• CIPS
• DCVG/ACVG
• CIPS & DCVG/ACVG
• Double Impedance CIPS
• Double Impedance CIPS & DCVG/ACVG
2 Person Survey
Additional supplies needed:
• 2x CTL-131 survey pole
• 2x CTL-272 short Y cable
• Choice of:
o CTL-273 3m extension
o CTL-274 6m extension
Possible surveys:
• DCVG/ACVG
• CIPS & DCVG/ACVG
• Double Impedance CIPS &
DCVG/ACVG
• Parallel CIPS
