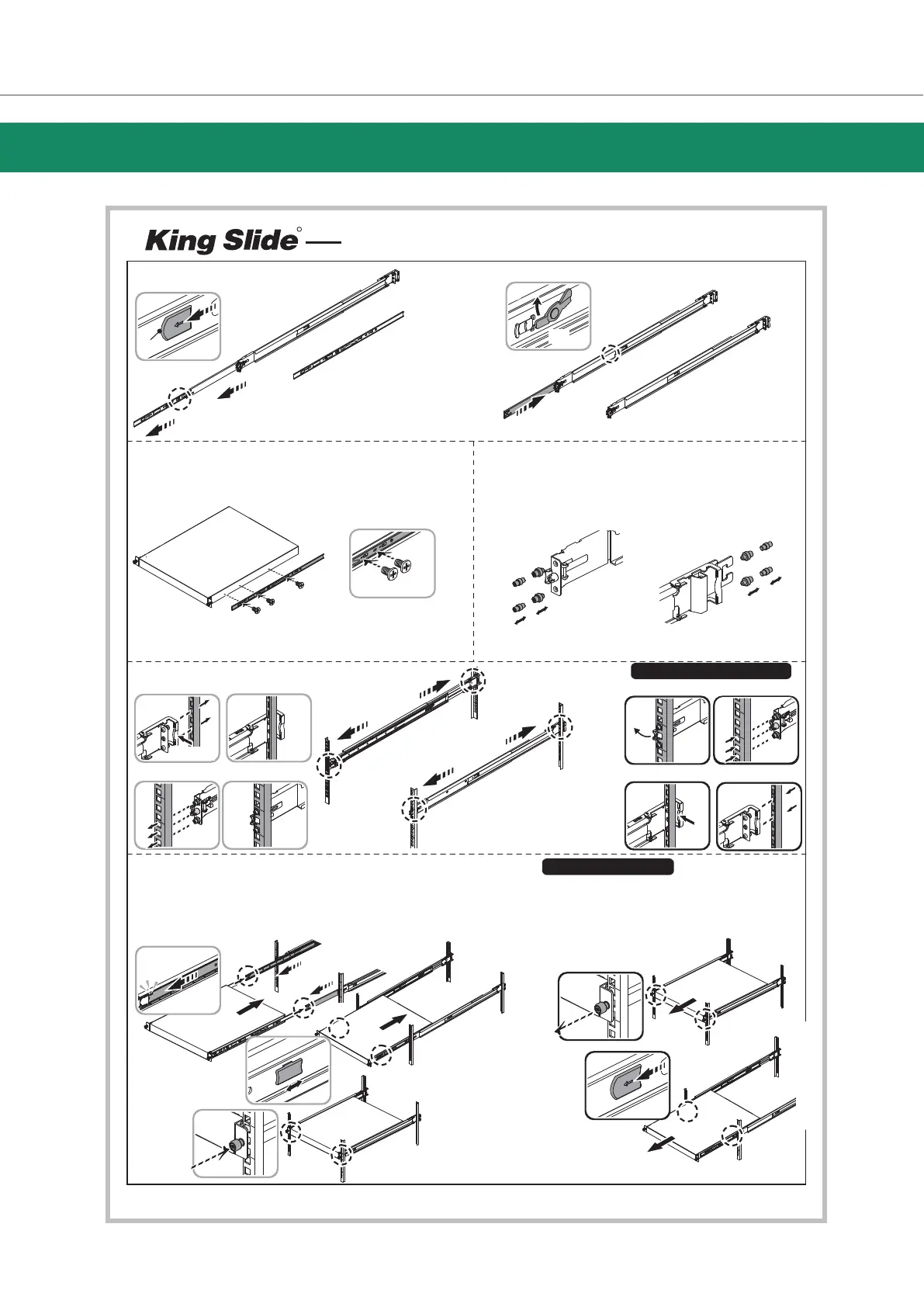

2) Install the inner rail onto the chassis.
Screw Hole
ⓐ~ⓒ
1-1)
1-2)
Remove the inner rail.
Push (a) and slide middle rail back.
Pull
Click!
Click!
Click!
Click!
inner rail
middle rail
outer rail
➊
➌
➎
➏
➋
➍
Pull tab forward and
take out inner rail.
Push tab to slide the
middle rail.
white
⒜
3) Check hole type on rack post. Choose suitable pin of bracket to
install if needed.
Ⓑ
Ⓑ
Ⓐ
Ⓐ
Front bracket
Front bracket
Front bracket
Front bracket
Ⓐ
Ⓑ
9.5 ( )
7.1
Square Hole
Round Hole
Pre-installedⒶ
Ⓑ
Rear Bracket
Rear Bracket
Rear Bracket
Rear Bracket
4) Fix the outer rail/bracket assembly to the frame.
Push
Note:
L,R side of rail are symmetrical.
Please repeat installation step for
the other side.
➊
➊
➍
➌
③
④
⑤
➌
Copyright © 2018 King Slide. All Rights Reserved
5) Insert the to complete the installation.chassis
Click!
➋
➎
①
Remove the chassis from rack.
①②
③④
Loosen shipping screw to pull out chassis.
Press the disconnect tab forward to remove
chassis.
①②
③④
Click!
➋
Push
④
M4x4L
locking
②
Pull
①
②
Detach Bracket from Rack Post
blue
➍
➊➋
➌
➍
➎
Pull the middle rail fully extended in lock position, ensure ball bearing
retainer is located at the front of the middle rail.
Insert the chassis into middle-outer rails.
When hit a stop, please pull/push the blue release tab on the inner rails.
Tighten chassis with shipping screws.
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
①④
-
①
③
④
②②
To Next Page
