Door reversal
This appliance has the capability of the door opening from either the left or right hand side.
Any parts that you remove from the appliance whilst reversing the door, should be retained for later use.
You will need to tilt the cooler backward to access the lower hinge which holds screws. Do not tilt more than 45
degrees and do not lay the cooler flat on its side.
Reversing the door :

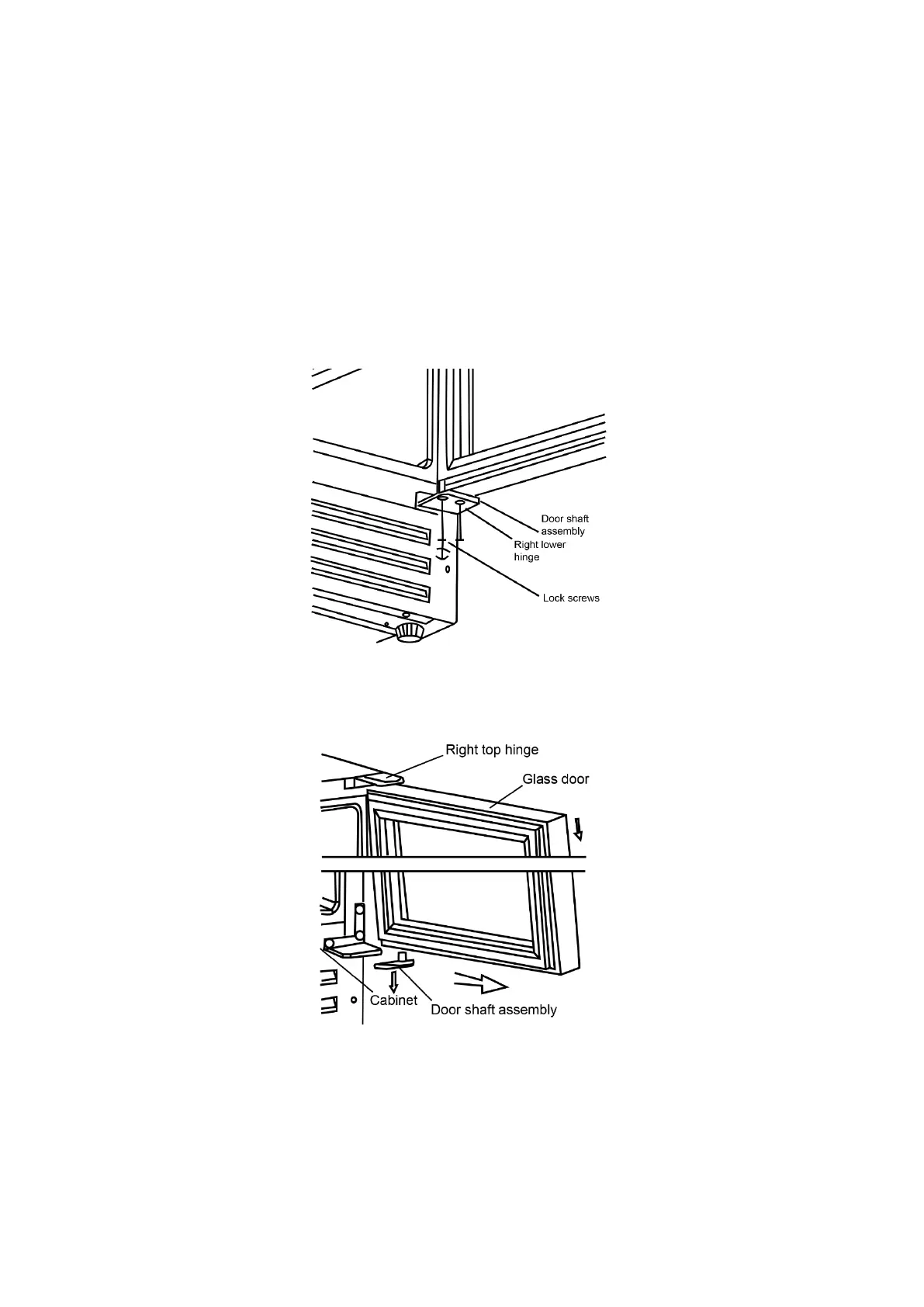

1. Open the glass door and remove the two screws under the bottom hinge. These are used to hold the right
lower hinge to the door shaft assembly.
2. Be careful to support the glass door with both hands to prevent it dropping after removing the screws.
Pull down to remove the glass door and place it on a padded surface to prevent scratching it.
