C10QM/C20QM EVK User Manual
www.cavliwireless.com
3.9 USB- UART Converter
A 48 pin FT4232 converter is used in the DDK. For more details refer UART interface section.

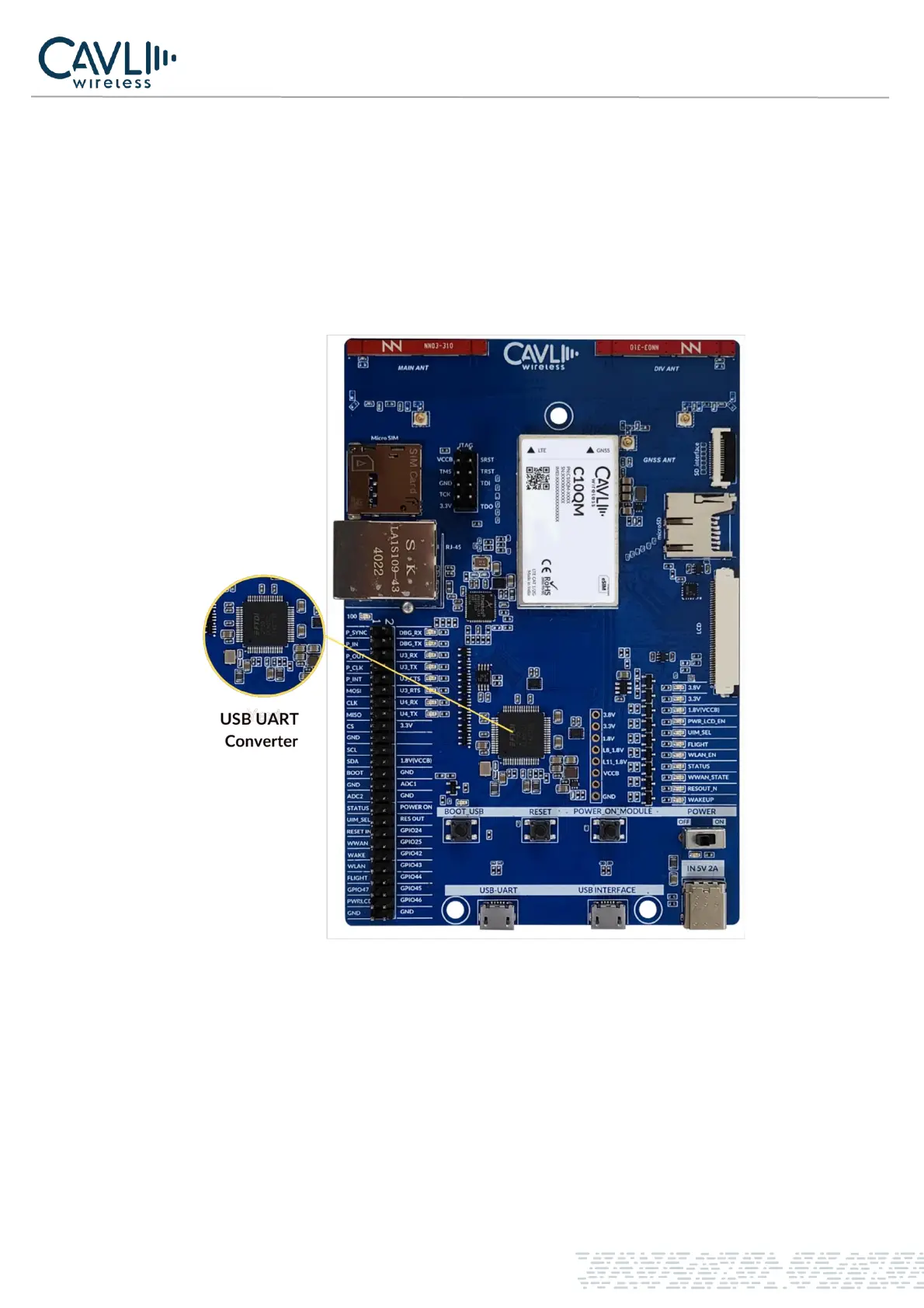

Figure 10: C10QM/C20QM EVK USB UART Convertor
3.10 50 Pin Connector
The 50-pin connector enables the user to access all the available interfaces. The signals from the 80-pin
connector are available in this 50-pin connector.
