Cavli Wireless C10QM - 3.16 USB Interface

28
C10QM/C20QM EVK User Manual
www.cavliwireless.com

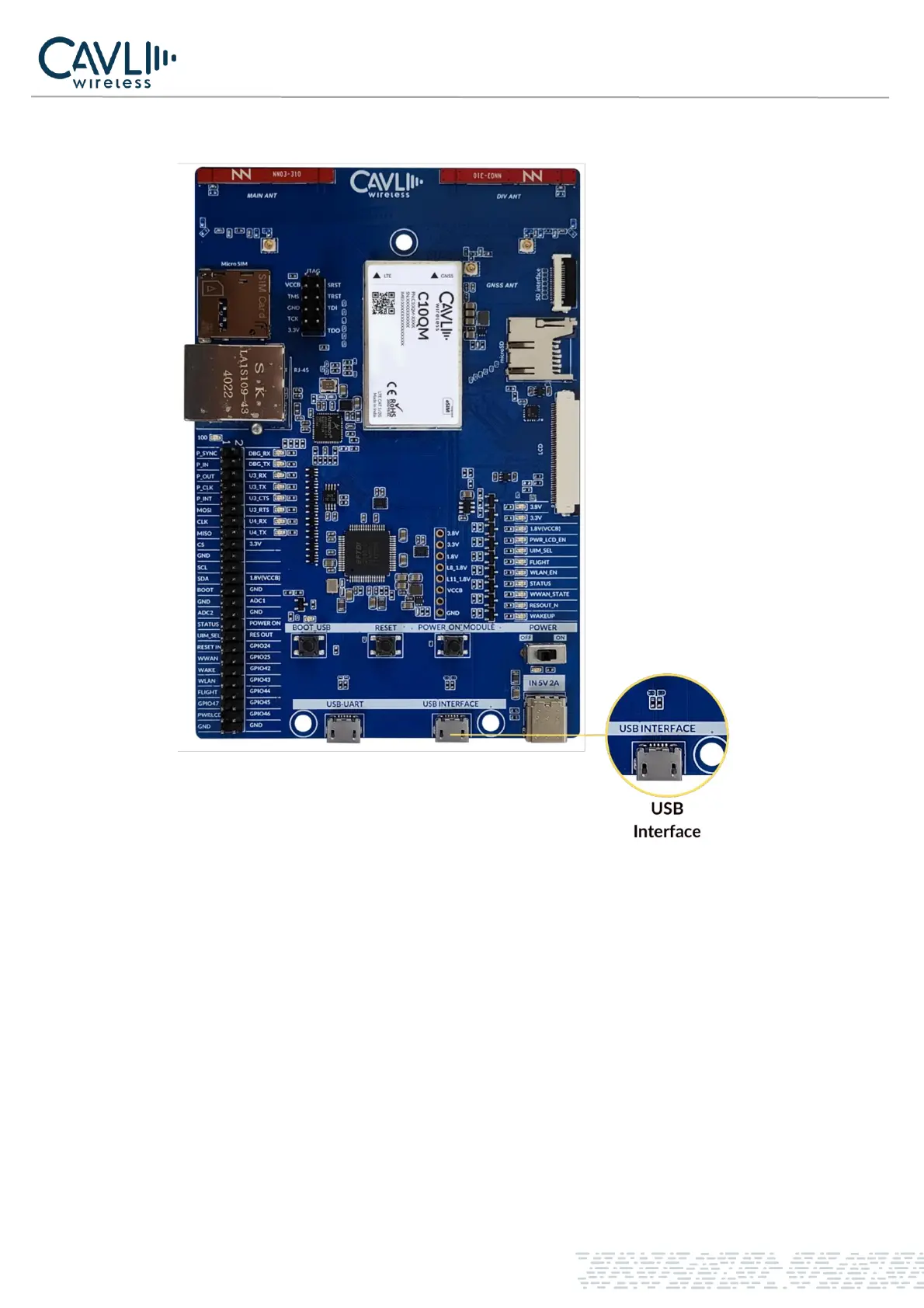

Figure 17: C10QM/C20QM EVK USB Interface
3.17 UART Interface
When the user connects a USB cable to the UART micro-USB port, four ports will be displayed in the
serial terminal. In which the first one is debug port and the third one is the AT Port.
