Page.77.

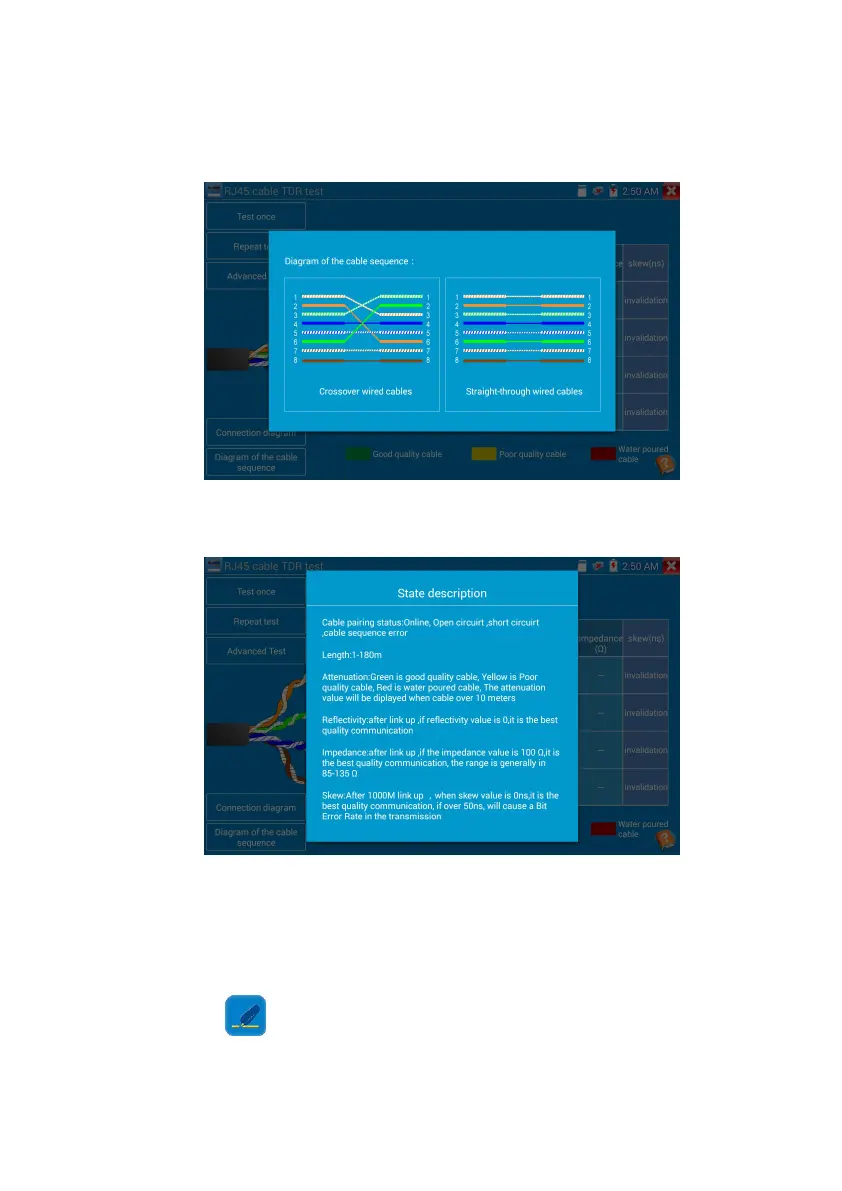

Connection diagram
Cable sequence diagram:
A straight- through and cross-over cable diagram, the cable sequence display for reference
Click “Help”, check the instruction of all parameters.
3.3.22 Cable Tracer ( *Optional )
Connect test cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the
bottom. Click icon to enter, click the Number on the screen to adjust audio type.
