Page.80.

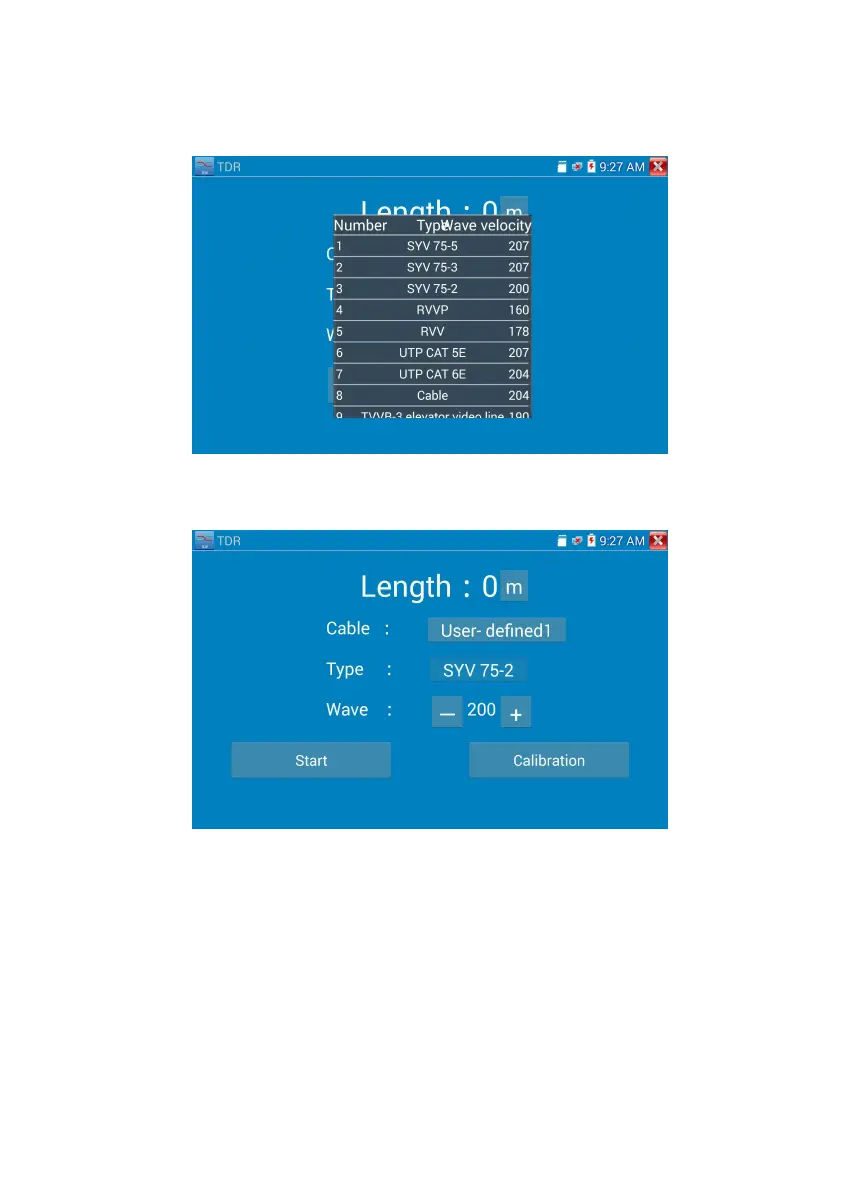

User-defined calibration: Choose the cable 100 meters to 200 meters (more than 50 meters) , click
“Cable” , “Type” to select user-defined 1 for calibration, 11 groups user-defined can be set.
1.Select user-defined and click “Calibration “to enter test , click “user-defined 1”can define cable
name,such as:AiPu BNC-5
2. Click “Cable” , “Type” to select cable, and corresponding type, for example, if testing BNC cable,
select “BNC”, if testing communication cable 75-2, select SYV 75-2.
