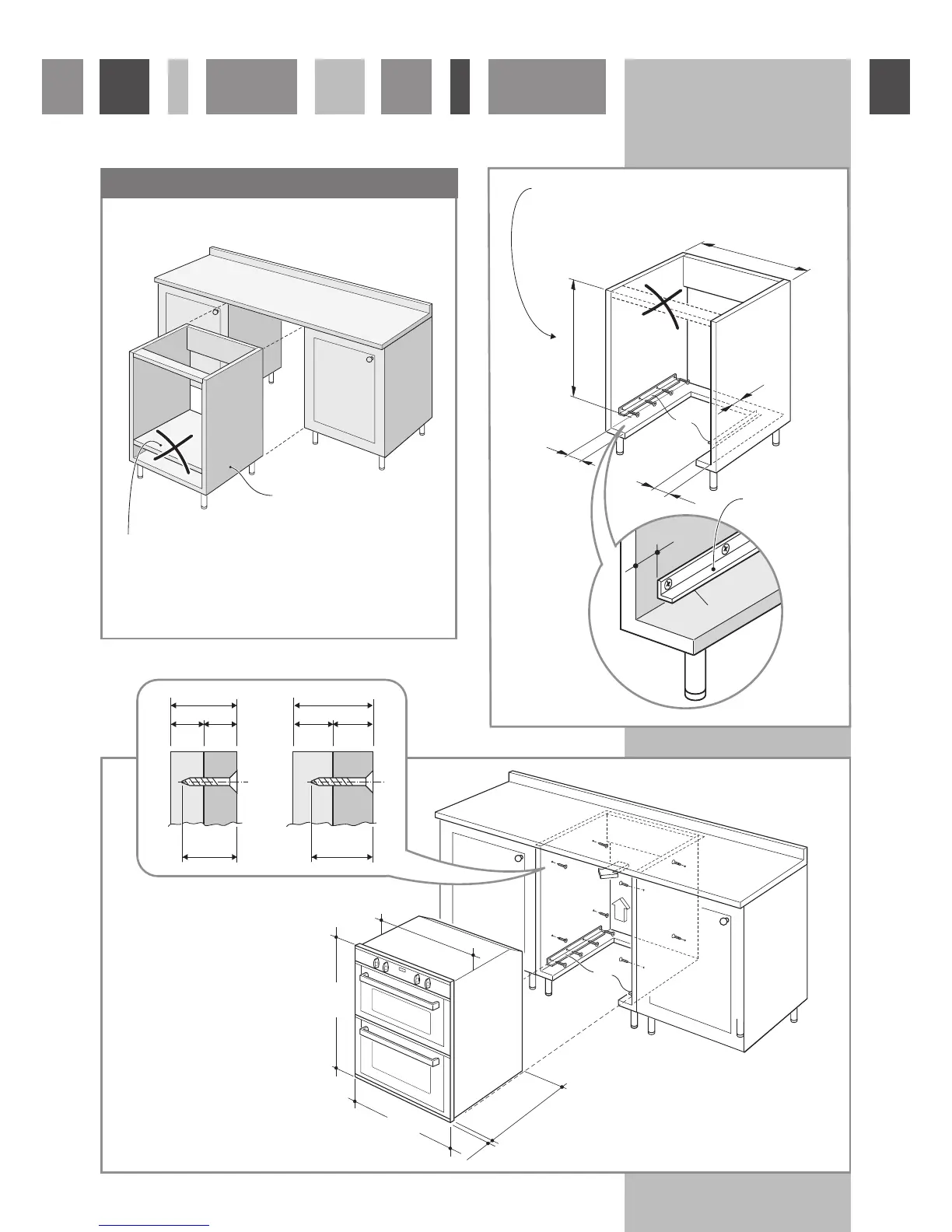

Fig. 8.3b
Remove single oven
shelf, if fitted.
Cabinet for installing
the oven
Fig. 29
544
20
538
718
595
B
Fig. 31
40
30
600
B
720 min
42
B
Support
base
40
Measure calculated from the underneath
of the worktop to the top support base
of the “B” supports.
Fig. 30
15 15
30
25
18 18
36
30
Installation “C”
