11
the chimney section, use the
calculation shown on this page for
your extractor (also refer to fig 4):
A = Height of gas hob burner or electric
hotplate height from the kitchen
floor
B = Clearance required:

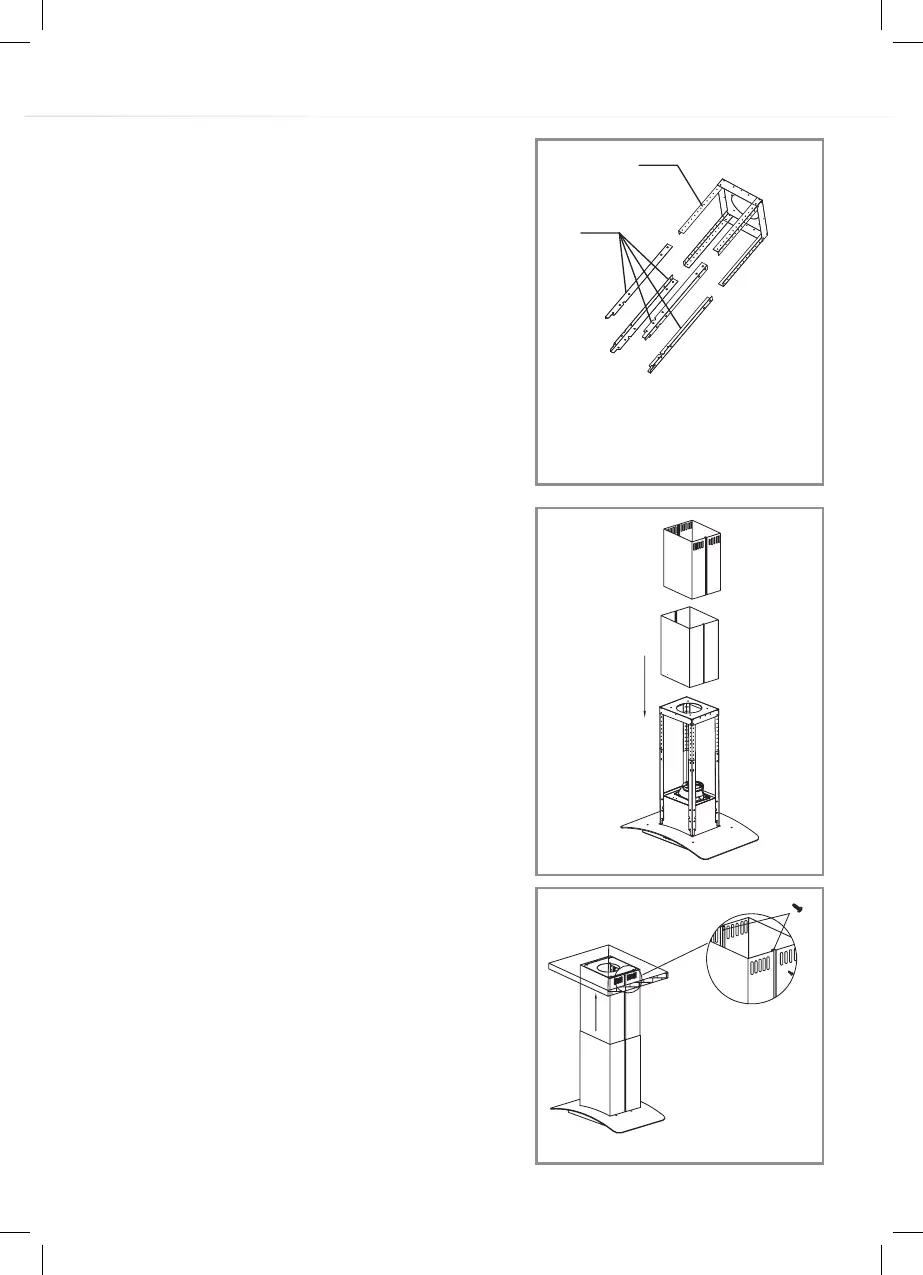

4. Assemble the chimney sections 1, 2
on the diagram fig 7, using the
supplied fixing screws and fix to the
chimney body. Measure the height
of the chimney and ensure that it is
equal or less than the height
calculated in step 3. (When the
extractor is mounted the height
between the hob and extractor must
Fig. 9
Fig. 8
Fig. 7
1 – slide rail
2 – top mounting frame
2
1
Gas hobs 650mm recommended
Electric hobs:
Ceramic hobs and solid plate 600mm
recommended;
Induction hobs 550mm recommended.
A+B is the required height of the body
of the extractor above the floor.
Next we need to calculate the required
height of the extractor.
Whole extractor height = ceiling height -
height above floor (A+B).
