Installation

It is important that wall plugs and screws are selected that

are suitable for the wall type you will be ﬁxing the extractor

to. CDA will not be liable for any issue arising from the use of

unsuitable plugs and screws.

The extractor is mounted to the wall using brackets and

support rails. To install the product onto the wall, proceed

as follows: -

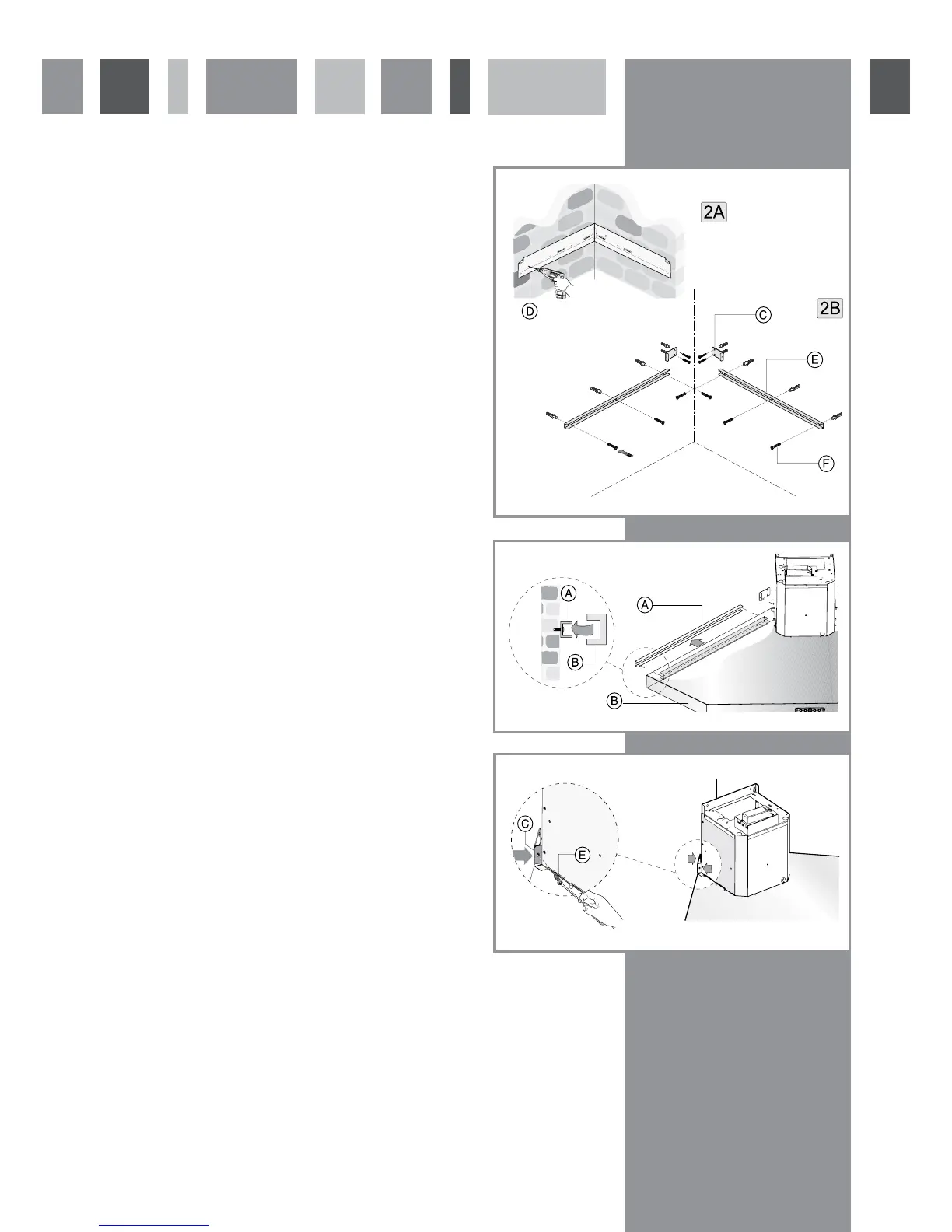

1. Position the template (D) on the wall and mark the

positions of the drill holes on the wall. Note that the

bottom edge of the template should be the height

required above the hob. (Fig 6 2A)

2. Drill holes suitable for the wall plugs you are using and

ﬁx the support rails (E) and brackets (C) to the wall using

suitable screws (F). (Fig 6 2B)

3. With the help of another individual lift the appliance and

slot it into the support rails (A), as shown (Fig 7)

4. Secure the extractor to the top brackets (C) using the

supplied screws (E). The extractor is now secured to the

wall. (Fig 8)

Fig. 7

Fig. 8

Fig. 6
