CDA EVPK90 - Page 17

17

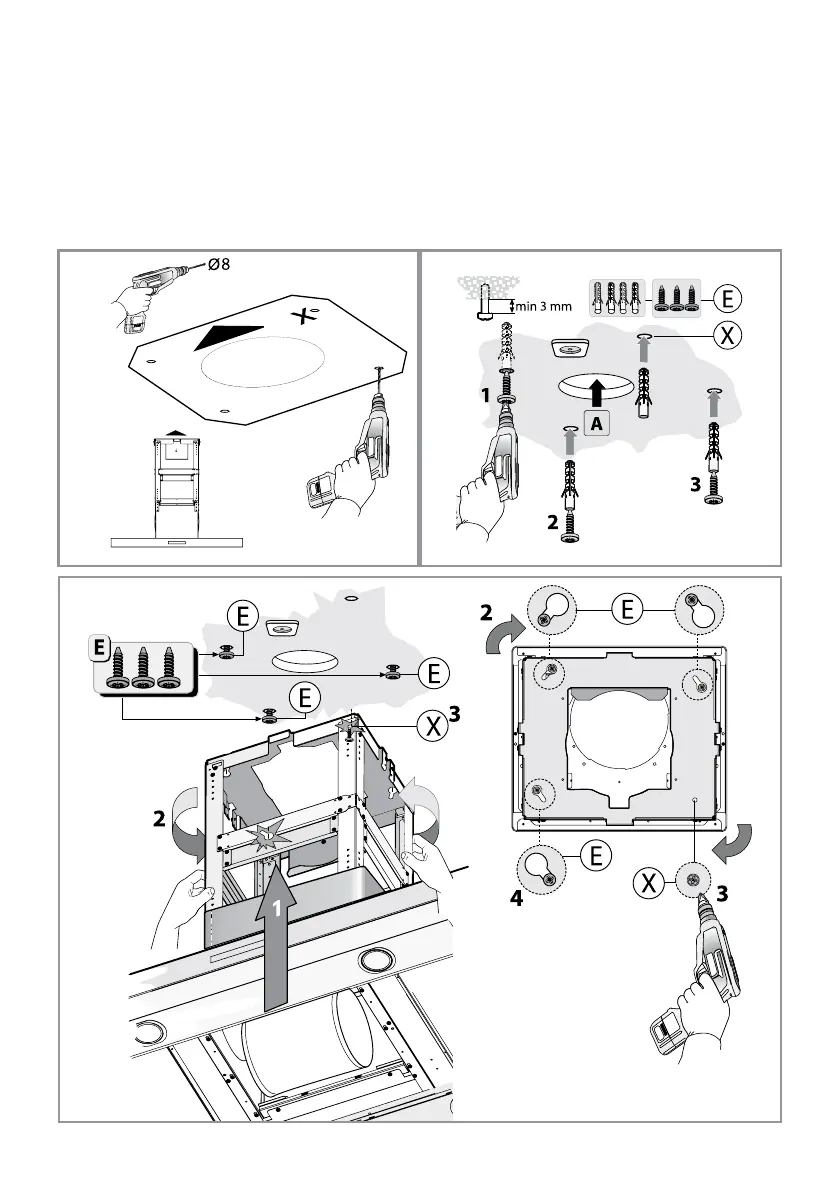

3. With the help of another individual, locate the extractor on the
three exposed ceiling screws and rotate into position. Tighten the
three screws and then secure the whole assembly into position
using a final screw in hole ‘X’ in Fig. 15.
Fig. 14 Fig. 15
Fig. 16
