Installation
Installing the extractor:
The extractor can be mounted directly
into the ceiling, where space between
the ceiling and joists permits, or it can
be built into a false ceiling. To install the
product, proceed as follows:

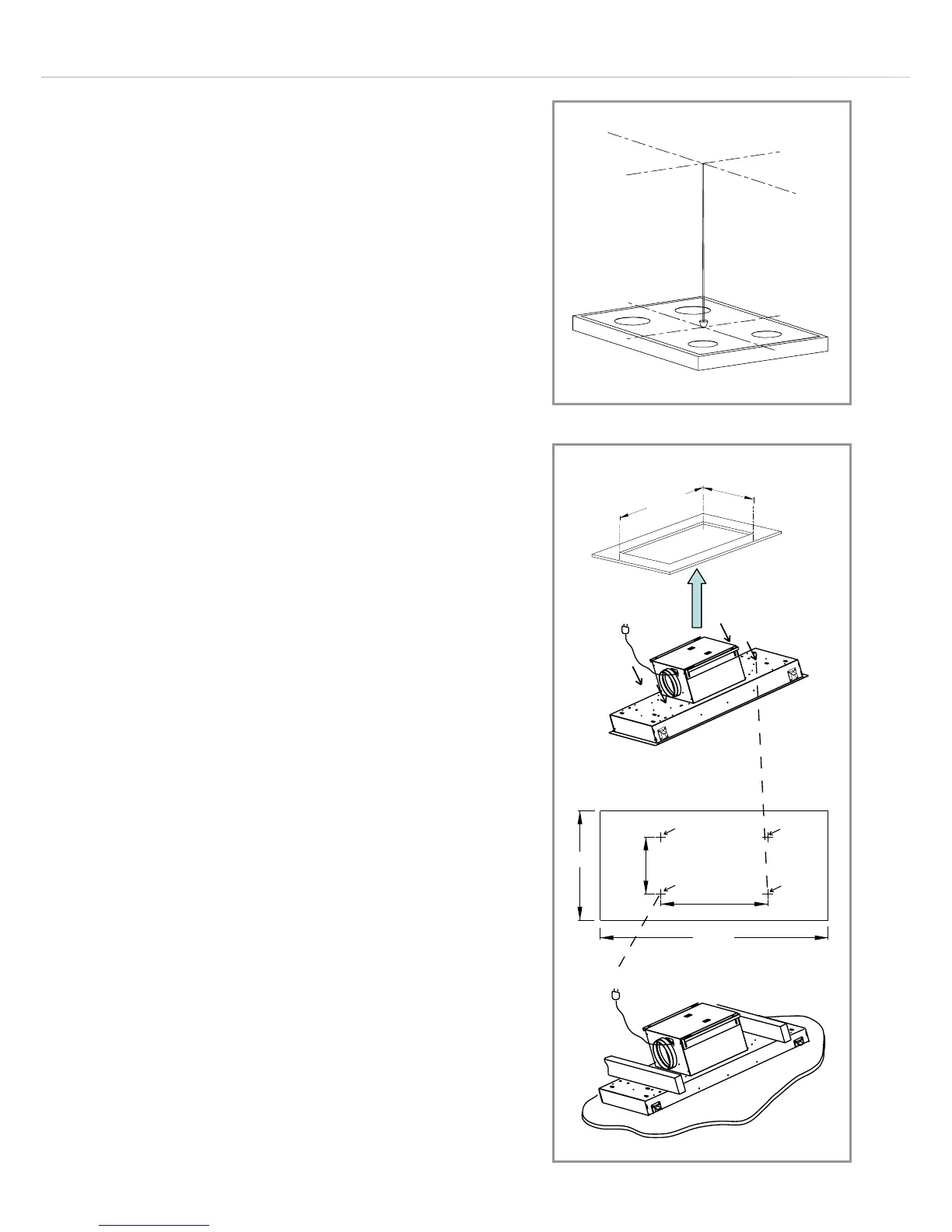

1. Mark the ceiling or false ceiling, as
appropriate, with centre point of the
hob to start the positioning of the
extractor, as shown:
Fixing using the motor
structure:
(Two persons required)
2. Cut the mounting aperture for the
main body of the extractor, using the
dimensions shown in fig 9.
3. Mark the support holes in the ceiling
where the fixing screws and mains
cable will be located, as shown in
fig 9.
fig. 8
P
960
450
240
460
P
P
fig. 9
960mm
460mm
