Installation into a false
ceiling:
(Two persons required)
1. Open the decorative cover panel and
remove the two grease filters.
2. Remove the light panels by removing
the three screws securing each panel
first. Lift the panel and pull towards
the centre of the extractor to expose
the connections.
Carefully disconnect the light
connections and place the panels on a
soft surface to protect the steel finish.
The decorative cover can be removed,
if required, to make the installation
easier. To do this, simply remove the
hinge fixing screws then lift the panel
away, placing it on a soft surface for
safe storage.

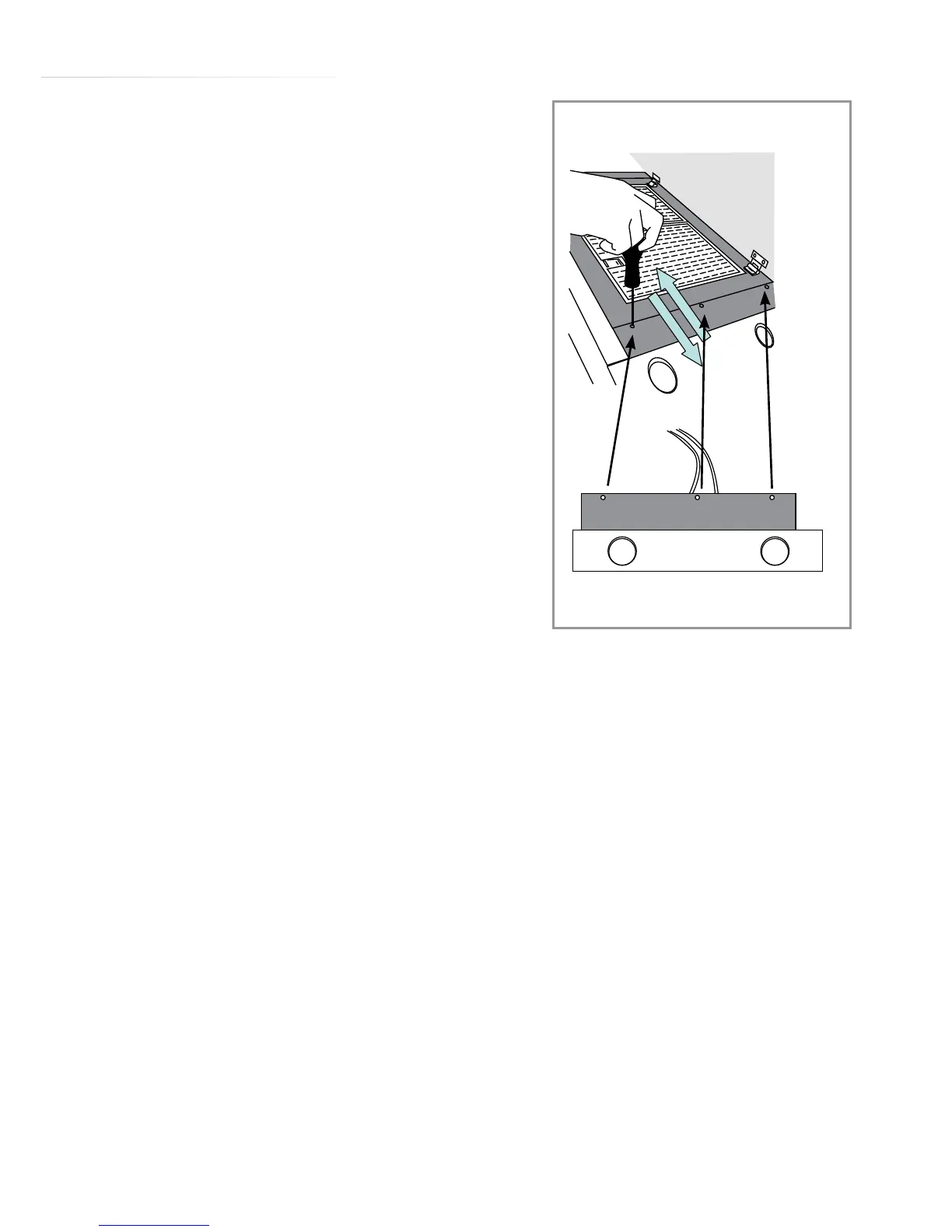

fig. 13
