Re-circulation:
An internal air vent is required, as shown below. This ensures that the
air is placed back in the kitchen after it has been filtered
Fit the charcoal filters to the body of the motor as shown in the
maintenance section of the manual.
Extraction:
The extractor is provided with a non-return butterfly valve which
should be fitted over the vent outlet before the ducting is fitted. This
prevents cold air being blown into the room from outside.
Securing the duct to the outlet:
Note that the duct pipe should be secured and sealed to the vent
outlet pipe / valve using appropriate ducting tape or a securing clamp.

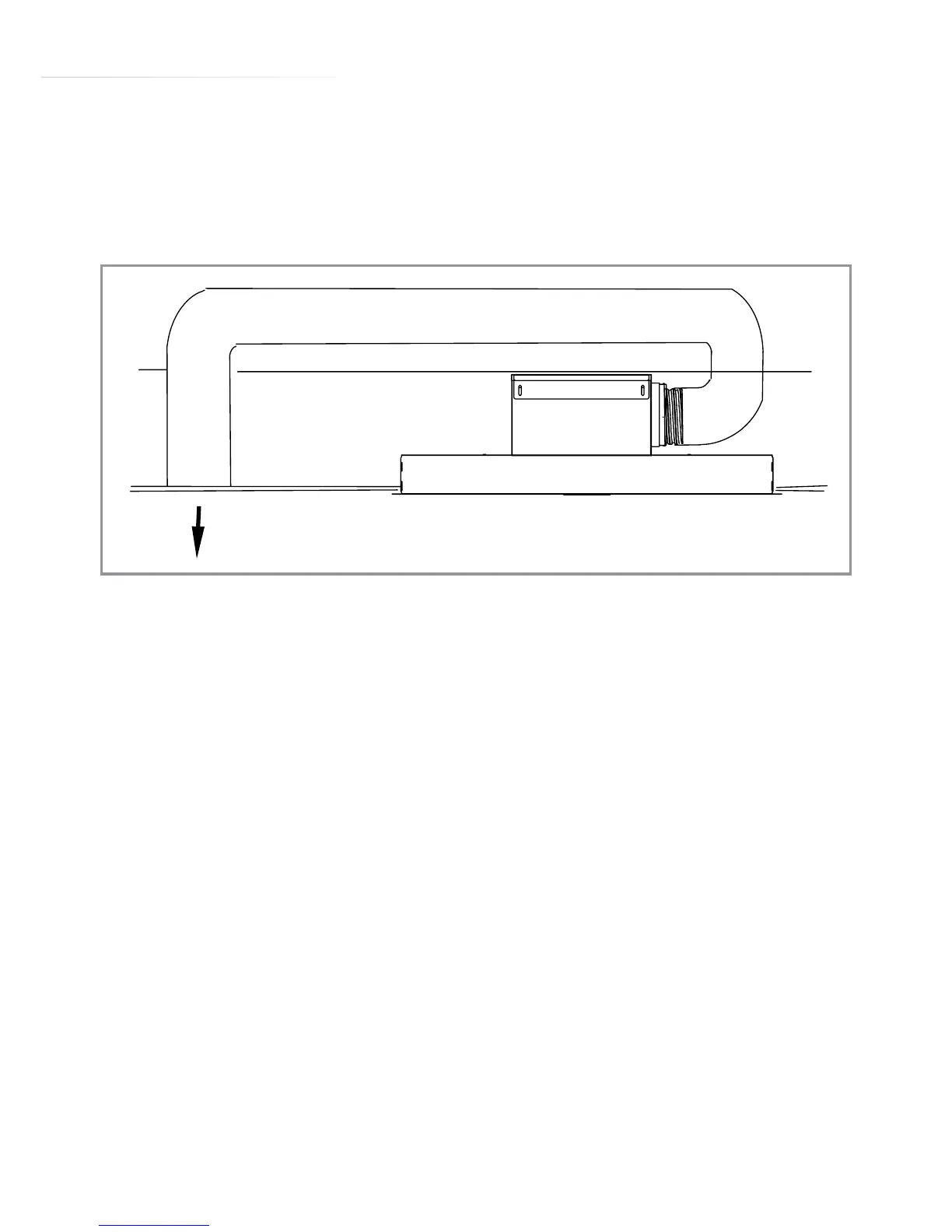

fig. 18
