Fitting the product
into the cabinet
1. Remove the gasket protection
pieces:
The gasket protectors prevent
excessive seal compression during
transport and are required during
the installation process. Remove the
gasket protector from each door (fig
6) and proceed with the installation.
Cover caps are provided to fill the
hole; take care when inserting these.
2. Fitting the top xing brackets:
Secure the two top fixing brackets
to the top of the product using two
screws for each bracket, as shown in
(fig 7) (a).
3. Fitting the front shelf trim:
The front shelf trim fits to the top
of the unit by hooking into slots on
the top edge of the product (b). The
trim piece should be fitted loosely at
this stage to allow access to the top
fixing brackets.

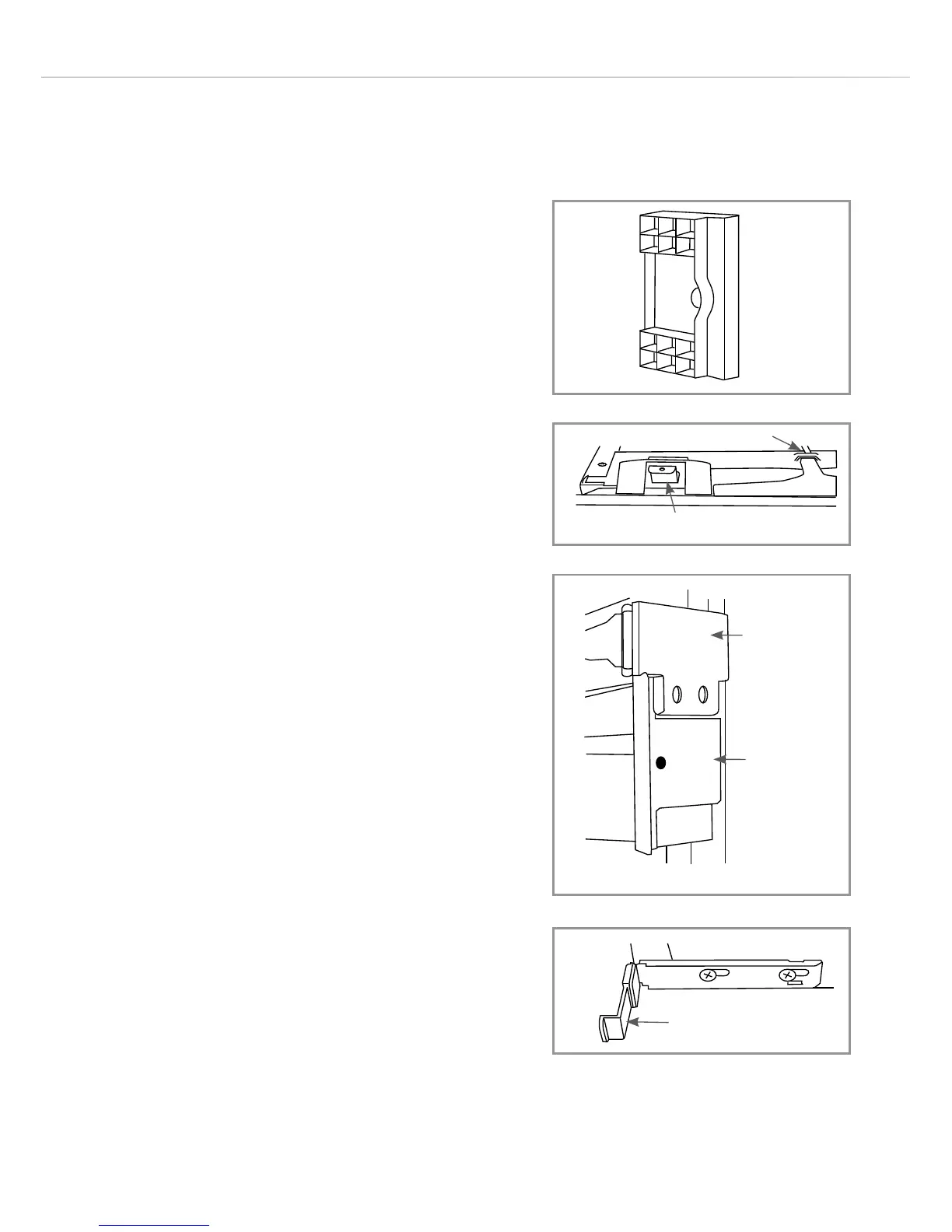

fig. 6
fig. 7
fig. 8
fig. 9
A
B
Width spacer
(One to be fitted
top each hinge
when 15mm
cabinets are
used)
Door protection
piece being used
as a guide.
Guide piece simply
slotted in to the fixing
bracket
