24
Adjusting the position
of the fascia doors

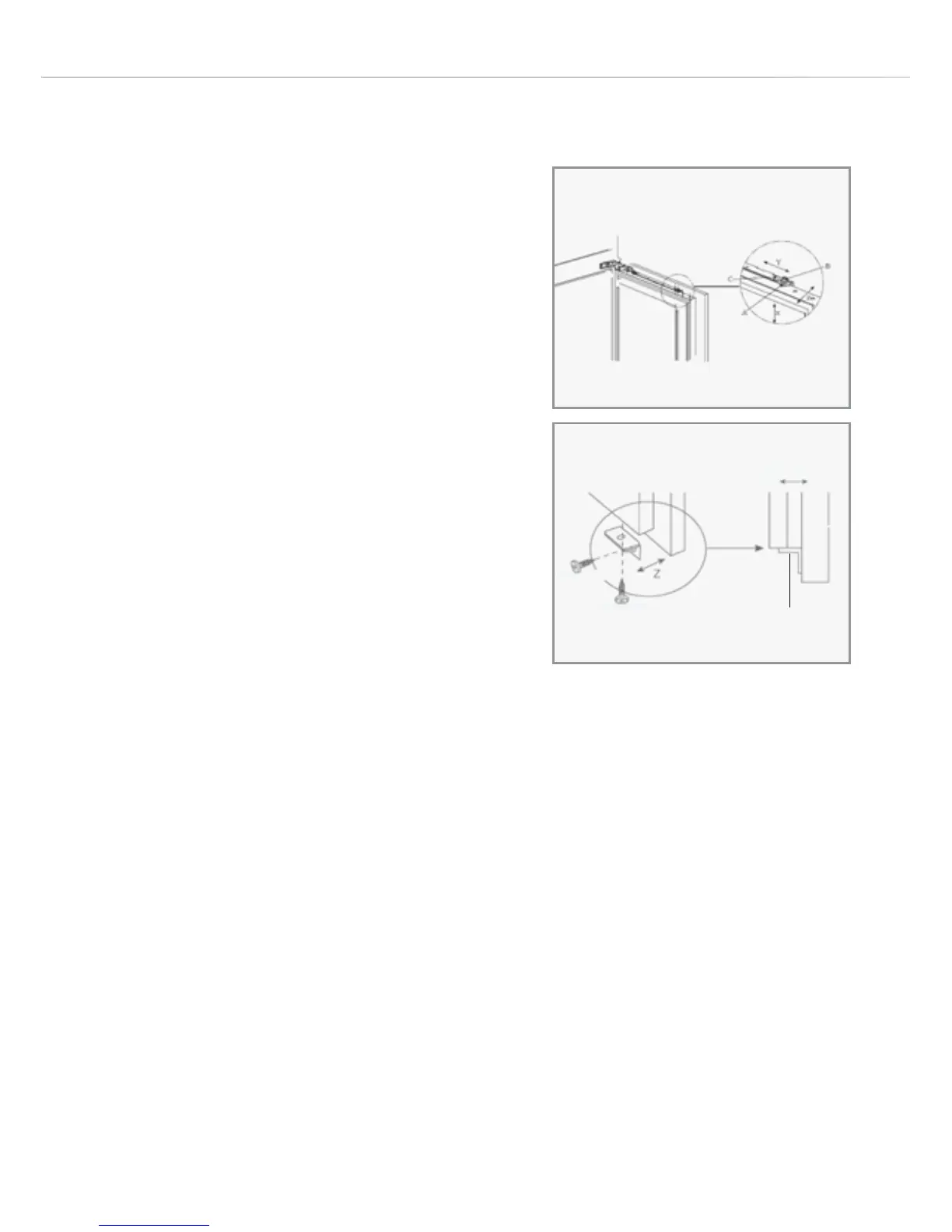

The position of the fascia doors can
be made in all 3 axes by following the
guide shown below (figure 20). If the
range of adjustment detailed below is
not enough then the refrigerator is not
located correctly in the cabinet and/
or the upper fascia fixing plates are
incorrectly positioned.
Horizontal adjustment
(Y):
1. Loosen the upper fixing plate nuts (B).
2. Slide the plate left or right as
required; this gives approximately
5mm of adjustment.
3. Tighten the fixing nuts to lock the
fascia in position.
Vertical adjustment
(X):
To adjust the vertical position of the
door, use a 5mm spanner and turn the
height adjustment screw as required.
fig. 20
fig. 22
Cupboard door
Depth adjustment
