20
fig. 14
fig. 13
fig. 12

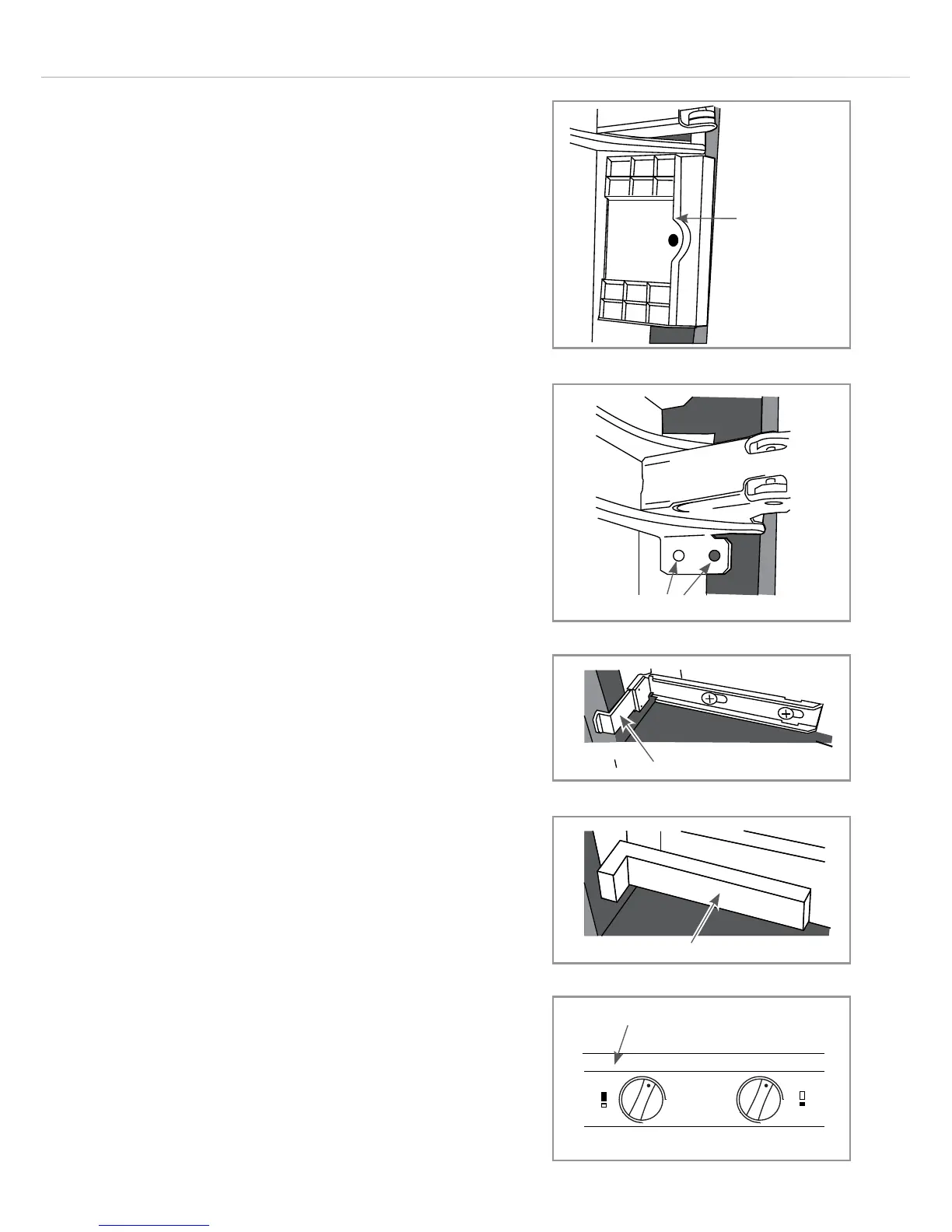

8. Fitting the bottom cabinet xing
bracket:
A sliding bracket is provided to
secure the non-hinge side of the
product to the cabinet. This is fitted
to the bottom of the product using
two machine screws, as shown
below. A guide piece is also provided
to ensure the unit is aligned when
installed. Fit the bracket and guide,
as shown but do not tighten the
securing screws to allow the bracket
to slide left and right.
9. Positioning the product in the
housing:
At this stage the product can be
pushed into the housing unit,
ensuring that the two guide pieces
are fitted in the hinges and the guide
is fitted to the lower fixing bracket.
When the guides are flush against
the front face of the cabinet sides the
product is at the correct depth in the
unit.
fig. 10
fig. 11
Mid
High
S.Cool
Low
REF
.
FRZ.
Mid
High
Low
S.Frz
Guide piece
simply slotted
in to the fixing
bracket
The fixing holes
Pull towards the fridge
to break o the guide
Decorative bracket trim fitted in place
Slide the top cover into place so
that it is flush against the top shelf
