Fitting the hob
Unpacking the hob:
Take care not to lose, drop or mishandle any parts.
Fitting position of the hob:
This appliance must be, when installed, a minimum of 50mm from
any back wall and a minimum of 55mm away from any adjacent
vertical surfaces, e.g. a tall cupboard end panel. This may be reduced
to 50mm if the adjacent surface is resistant to fire (tiles or steel for
example).
Ventilation requirements:
This appliance must be installed to allow air to flow freely to the air
intake and from the air outlet. An air gap of 50mm is recommended
immediately below the hob. Air needs to be able to enter and exit the
unit.
Failure to allow sucient ventilation could cause problems with
operation or damage to the hob and constitutes incorrect installation,
which is not covered by the product’s warranty.
!
A(mm) B(mm) C(mm) D E
760 50 min. 20 min. Air flow Air exit ≥5mm
F
>35mm
G
<50mm
D
E
A
C
B
>2cm
F
G

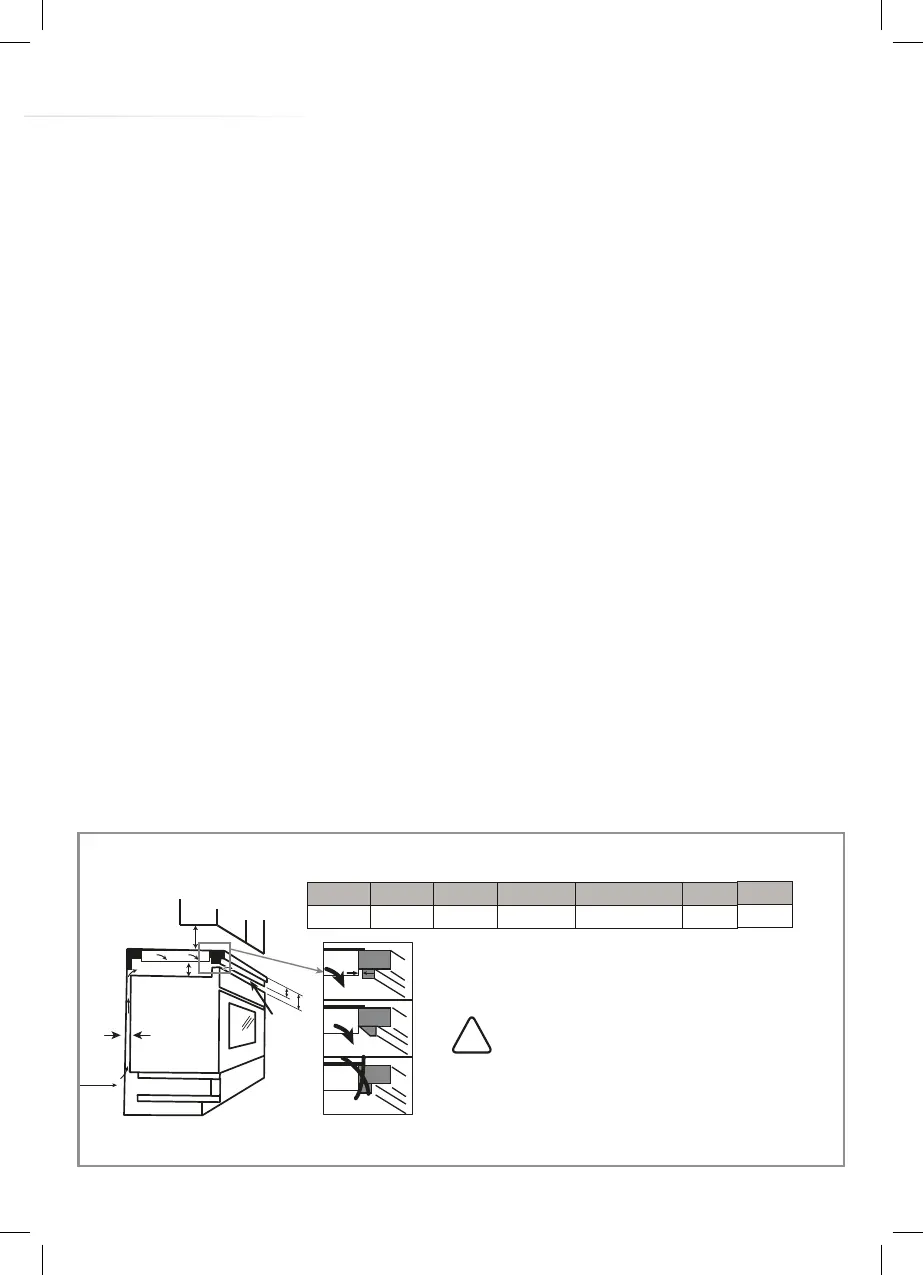

Note: There must be a 560x5mm opening in the front
(position E) to dissipate the air.
After installation, ensure the airflow opening is not
blocked by the worktop.
Fig.4
