Using your hob

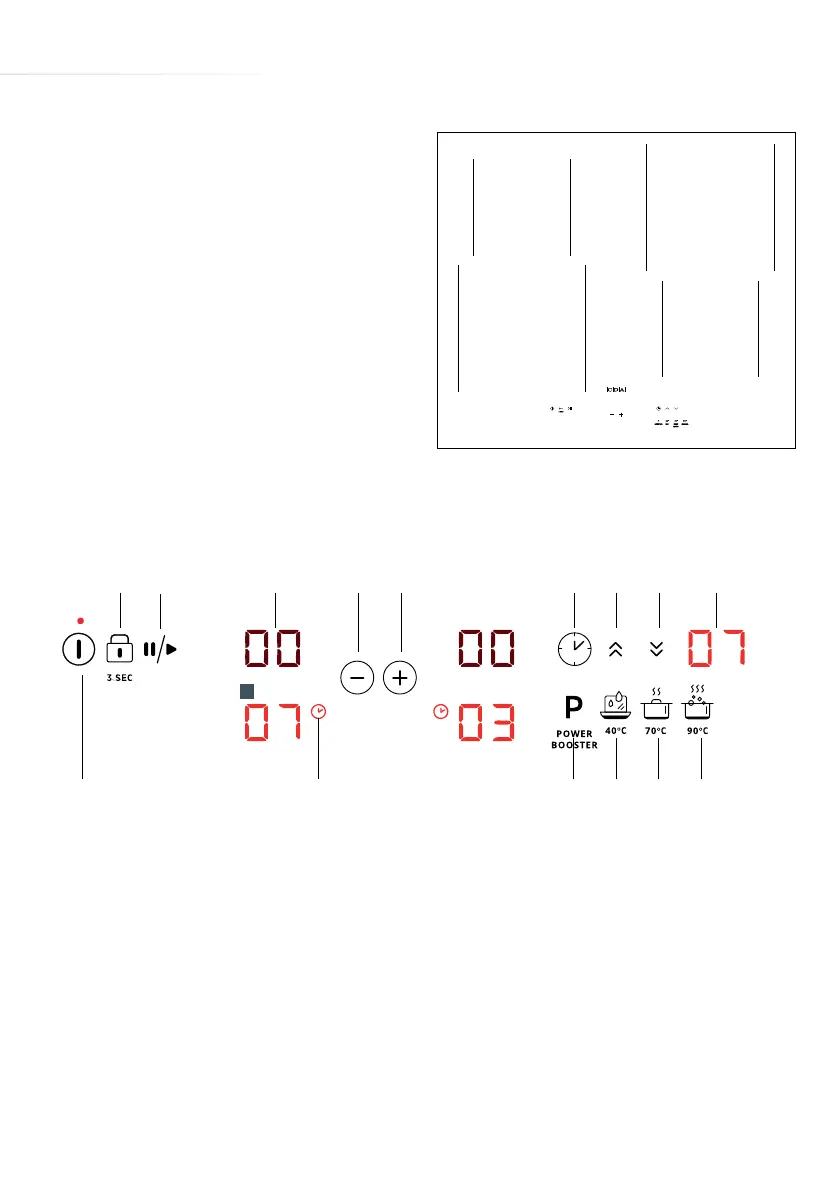

Zones:
1. Front left
Power Booster induction
cooking zone
2. Back left
Booster induction cooking zone
3. Back right
Booster induction cooking zone
4. Front right
Booster induction cooking zone
Control Panel
4
1110 8
12
13 14 15
3
2
5
6
7
1
9
1. Sensor on/o board with LED
2. Minus power setting sensor
3. Plus power setpoint sensor
4. Cooking zone indicator
5. Clock sensor
6. Clock sensor +
7. Clock sensor -
8. Clock indicator
9. Sensor key
10. Sensor pause
11. Sensor power amplifier
12. Temperature maintenance
program 40
o
13. Temperature maintenance
program 70
o
14. Temperature maintenance
program 90
o
