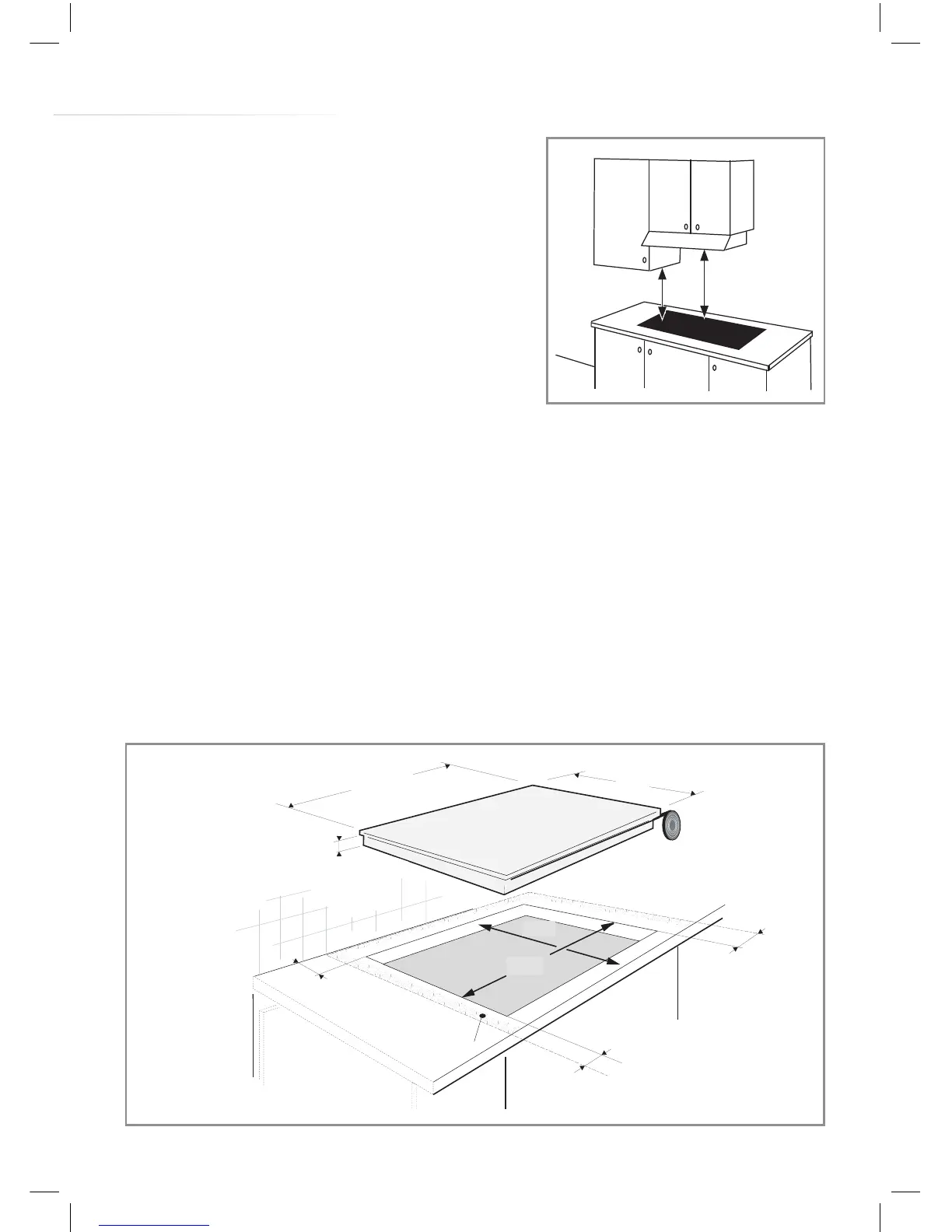

Fig.6
400mm
600mm
from the wall to the cut-out edge. The
distance from the hob, when fitted, to
the back wall is 50mm.
If a splashback/worktop upstand is to
be fitted, take this into account when
cutting the hole. The minimum distance
that the hob should be positioned away
from the rear wall or splashback is
50mm.
2. Fix the foam seal underneath the
appliance by following the outline of
the worktop upon which the hob will
rest. This ensures an airtight seal
with the worktop. Do not use silicone
type sealant.
Fig.7
40
40
60
40
A
ventilation
space
510
930
490
900
65
900
50
350
330
880
