39
Plug

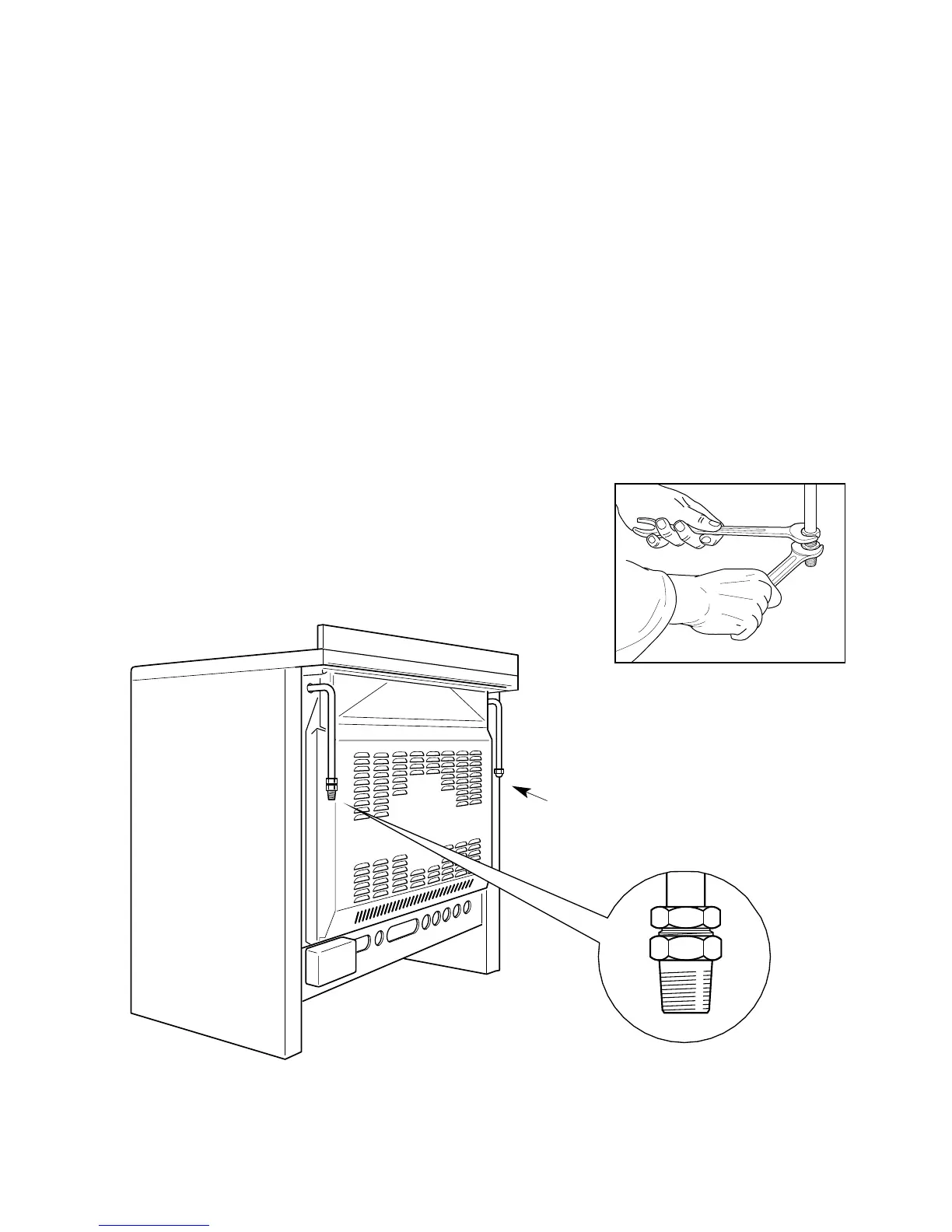

Fig. 39
Fig. 40
Gas connection
The gas supply must be connected to the gas inlet which is located at the left or the right
hand rear of the appliance (see figure 39).
The pipe do not cross the cooker.
To screw the connecting tube operate with two spanners (see fig. 40).
The unused end inlet pipe must be closed with the plug interposing the gasket.
After connecting to the mains, check that the coupling are correctly sealed, using
soapy solution, but never a flame.
