Dimensions Oven Housing
Height (mm) 595 600
Width (mm) 595 560
Depth (mm) 563.5 560 (min)

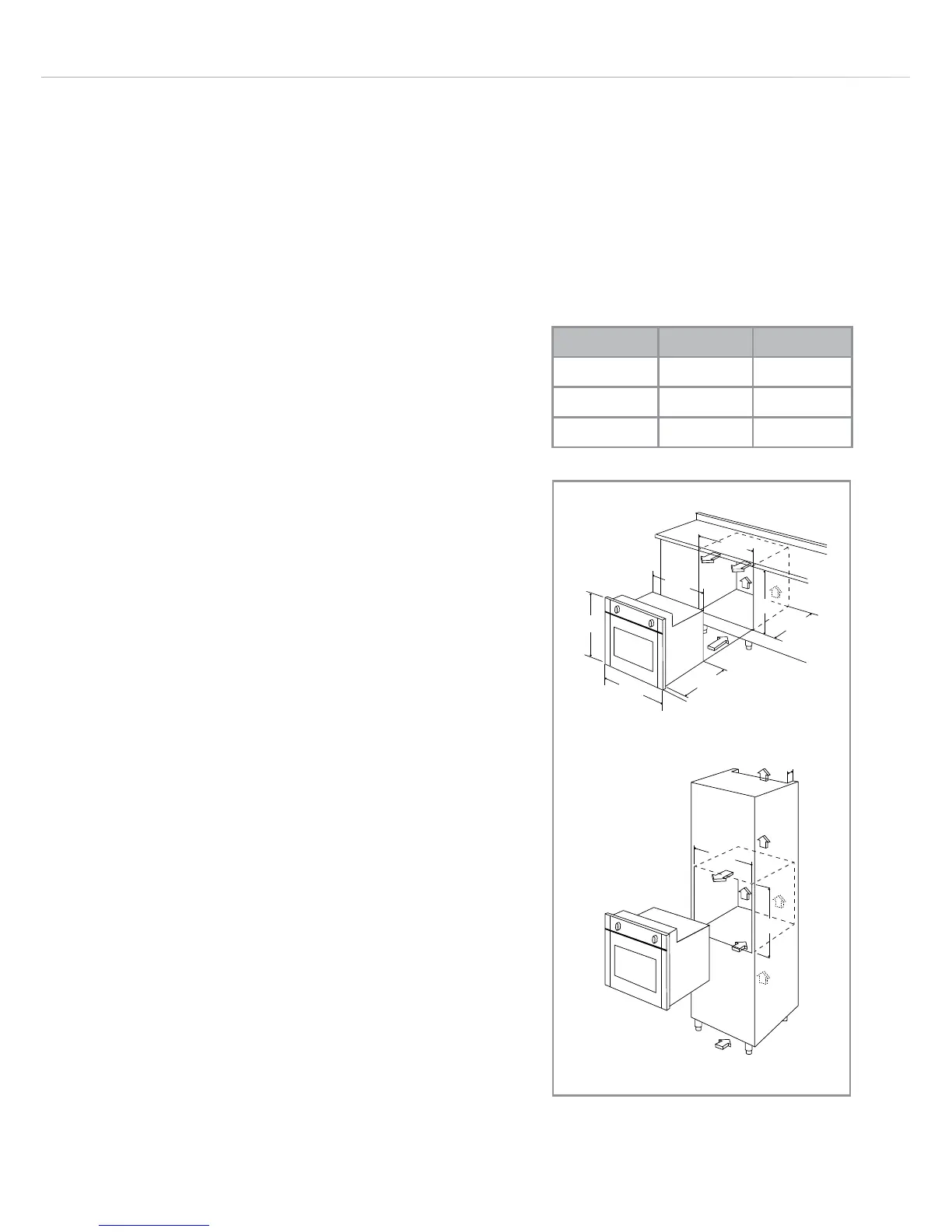

fig. 5
600
560
595
595
595
542
554
24
40
560
600
to the housing by fitting screws into
these holes. Remember the housing
should not be free standing but be
secured to the wall and/or adjacent
fittings.
How to install your oven
You will need the following housing
area fit your oven correctly.
The oven is designed to fit into a
cabinet of 600mm width. The oven
can be built in or built under the kitchen
units, but you must ensure that it is
properly ventilated. In the diagram the
built-in oven is ventilated by means of a
space at the top of the kitchen cabinet.
There are many other methods of
ventilating your oven - consult a
qualified engineer for advice.
